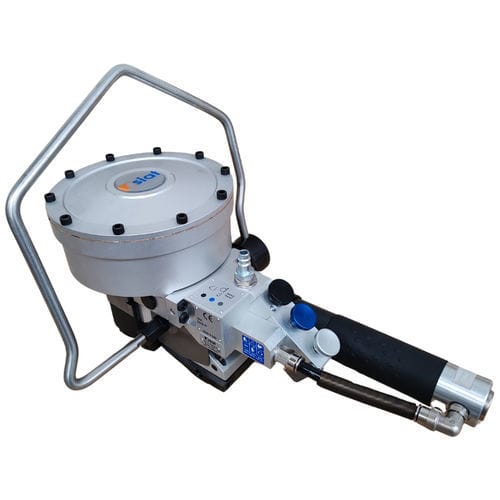

Pneumatic strapping tool STSR 19-25-32

for steel strapswith seal

Overview
Pneumatic strapping tool for steel strap with seal. Designed for industrial heavy-duty applications, available in 3-button (standard) and 2-button (on request) versions. Standard strap widths: 19 mm, 25 mm and 32 mm.

Advantages

• Easy to operate
• Compact, modern design
• Suitable for continuous industrial use

Key features

• Package type: flat / round surfaces
• Strap quality: steel (Rmax. 1100 N/mm²)
• Strap width: from 19 mm up to 32 mm
• Strap thickness: 0.6–1 mm (Rmax. 800 N/mm²)
• Strap thickness: 0.63–0.8 mm (Rmax. 950 N/mm²)
• Max. tension: 9000 N
• Tension speed: around 6 m/min
• Joint type: overlap seal – double notches (min. length 45 mm)
• Air pressure: 6–7 bar
• Air consumption: 12 l/s
• Weight: about 10 kg

Options
Pins jointed special suspension bracket kit

Ideal for

• Metal & Glass Industry

Technical specifications

• Model/Series: STSR
• Versions: 3 buttons (standard), 2 buttons (on request)
• Strap sizes supported: 19 mm, 25 mm, 32 mm
• Strap quality: steel up to Rmax. 1100 N/mm²
• Strap thickness ranges: 0.6–1 mm (Rmax. 800 N/mm²); 0.63–0.8 mm (Rmax. 950 N/mm²)
• Max. tension: 9000 N
• Tension speed: around 6 m/min
• Joint: overlap seal with double notches (min. length 45 mm)
• Air pressure: 6–7 bar
• Air consumption: 12 l/s
• Weight: about 10 kg
