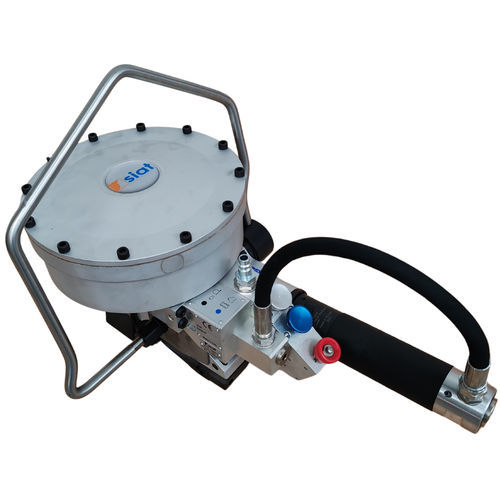

Pneumatic strapping tool STS 25 & 32 PLUS 4

for steel straps

Product overview
Pneumatic strapping tool for steel strap designed for heavy-duty industrial applications and low-pressure air systems. The updated design features a smaller, reinforced and lighter body compared with the previous HT model, enabling reliable operation from 4.5 bar while maintaining superior seal notch integrity. The reduced size and weight improve handling and ergonomics for continuous use. The lower-pressure function (from 4.5 bar) is available for both 25 mm and 32 mm steel strap.

Advantages

• Easy to adjust and operate
• Compact modern design for improved handling
• Reliable performance in low-pressure environments
• Equipped with BOSCH motor
• Accessible design for cleaning and maintenance

Key features
Package type: flat/round surface
Strap width: 25 mm – 32 mm
Strap thickness: 0.6 mm – 1 mm (Rmax. 800 N/mm²) max. 0.8 mm at 4.5 bar
Strap thickness: 0.6 mm – 1 mm (Rmax. 950 N/mm²) max. 0.9 mm at 6.3 bar
Max. tension: 9000 N (with standard motor at 6.3 bar)
Max. tension speed: 6 m/min. (at 6.3 bar)
Joint type: overlap seal – double notch (Min. length 45 mm)
Air pressure: 4.5 – 7 bar max.
Air consumption: 12 l/s
Weight: about 10.8 kg

Ideal for industries
METAL & GLASS INDUSTRY

Technical specifications

• Model: STS 25 & 32 PLUS 4 (2 buttons)
• Package type: flat or round surface
• Strap width compatible: 25 mm – 32 mm
• Strap thickness (Rmax. 800 N/mm²): 0.6 mm – 1 mm (max 0.8 mm at 4.5 bar)
• Strap thickness (Rmax. 950 N/mm²): 0.6 mm – 1 mm (max 0.9 mm at 6.3 bar)
• Maximum tension: 9000 N (with standard motor at 6.3 bar)
• Tension speed: up to 6 m/min at 6.3 bar
• Joint type: overlap seal with double notch (min length 45 mm)
• Operating air pressure: 4.5 – 7 bar
• Air consumption: 12 l/s
• Weight: about 10.8 kg
• Motor: BOSCH (equipped)
