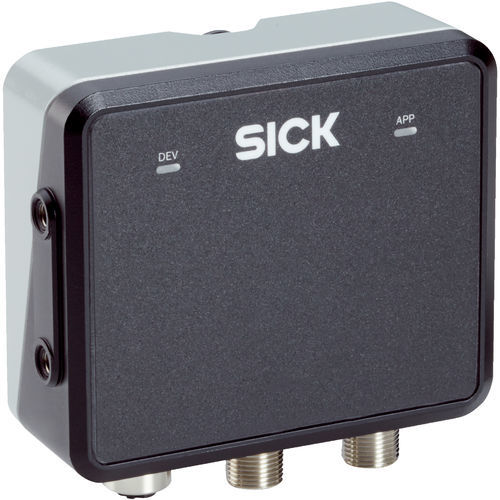

Radar distance sensor RMS2000 series

EthernetIP69IP67

2D radar sensor for reliable object detection in especially harsh weather conditions The RMS2000 radar sensor detects objects very reliably, even under especially harsh ambient and weather conditions, e.g., in strong rain or snowfall, thick fog, or high dust loads. Detection fields can be flexibly configured in the working range of the sensor. This enables the RMS2000 to simultaneously and very accurately detect distances, angles and speeds of objects. Depending on the parameterization of the device, detections classified as relevant can be signaled via the digital outputs, or measurement data transmitted via the Ethernet interface for further use. Benefits Simultaneous detection of multiple object distances, angles and speeds Integrated field evaluation or output of measured values selectable Flexible configuration, easy to parameterize Quick and easy sensor cleaning Can be used internationally (certifications for numerous countries) Features Modern FMCW radar technology Integrated digital inputs and outputs as well as Ethernet interface Sensor parameterization via web browser Base frequency of 61 GHz with a bandwidth of 500 MHz
