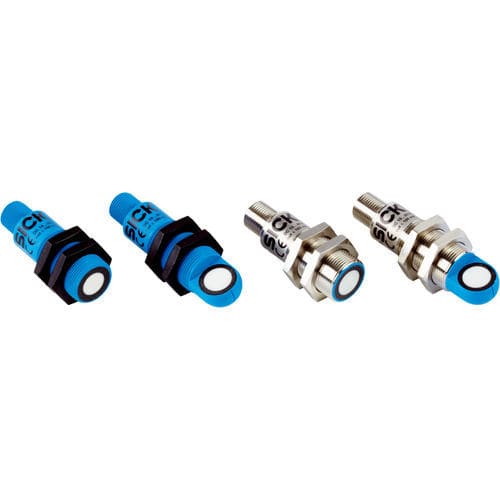

Cylindrical distance sensor UM18 series

LEDanalogIO-Link

Simple set up, perfect detection The UM18 sensor product family provides simplicity and high functionality. The UM18 ultrasonic sensors are available in straight and angled versions for easy machine integration. A metal or plastic housing allows use in demanding ambient conditions. Due to four sensing ranges up to a total of 1,300 mm and LED status feedback, the sensors are suitable for a broad range of applications. Whether analog or PNP/NPN switching output, one or two push-pull switching outputs with IO-Link or the combination of analog and push-pull switching output with IO-Link, sensors of the UM18 product family leave nothing to be desired. Benefits Four sensing ranges up to a total of 1,300 mm for countless application possibilities Easy integration due to a short M18 housing, straight or angled Measurement filters and variants with temperature compensation for reliable measurement results and very high process reliability Rugged, one-piece housing ensures highest plant availability Synchronization or multiplex mode for the simultaneous use of up to 20 sensors increases application flexibility and process reliability Various output signals for solving complex applications Teach-in via cable prevents unintentional sensor adjustment, reducing machine downtime Rugged, reliable ultrasound technology Features Reliable measurement, regardless of material color, transparency, gloss, or ambient light Sensing ranges up to 1,300 mm Short metal or plastic M18 housing from 42 mm in length Straight or angled design Immune to dirt, dust, humidity, and fog Versatile interfaces including IO-Link available
