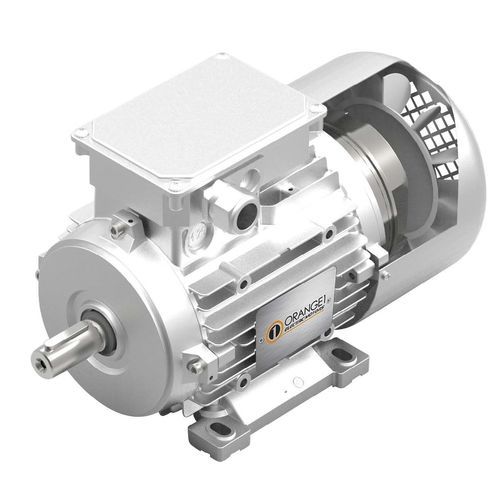

High-torque brake motor

three-phasesingle-phaseinduction

The main features of this type of brake are the sudden stop, the high braking torque and the possibility of numerous interventions in a limited amount of time, particularly indicated to immediately and accurately stop working and / or positioning, ensuring the locking of the shaft in the lack of voltage. t’s an electromagnetic brake that can be supplied with AC or with DC power supply, complete with rectifier connected and inserted inside the motor terminal board. It’s mounted in the rear part of the motor, inside the fan cover, which will be longer than unified IEC non-braking motors; the cooling fan is mounted at the rear of the brake. ed at the rear of the brake. It can be mounted on different motor ranges, also in the following versions on request: UL – CSA: motor built and marked in compliance with North American safety requirements ATEX: motor built and marked in compliance with the requirements of the 3G and 3D categories for Zone 2 – 22. We have the expertise and the availability to study,, design and implement any project that includes this type of brake, starting from the specifications/drawings provided by the customer. Shafts and / or flanges to design, mechanical suitability for particular radial and / or axial loads, protection and isolation from external agents, protection and isolation from external agents, pre-arrangement for inverter drive, servo ventilation and / or installation of encoder / resolver for speed feedback. Lifting, Translation, Handling, Packaging.
