Permanent magnet motor SQ Series
ACsynchronous400 V

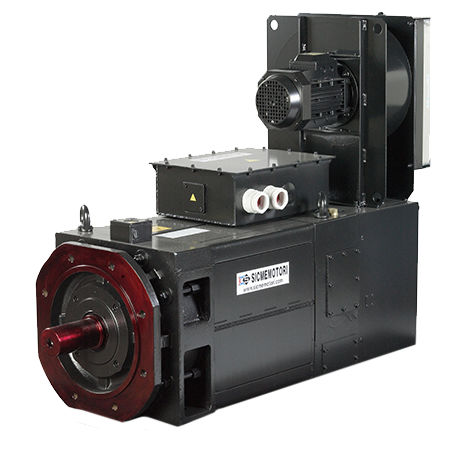

Permanent magnet motor - SQ Series - Sicme Motori - AC / synchronous / 400 V
Permanent magnet motor - SQ Series - Sicme Motori - AC / synchronous / 400 V
Add to favorites
Compare this product


Characteristics

AC/DC
AC
Type
synchronous
Voltage
400 V
Protection class
IP54
Configuration
permanent magnet, with brake, compact
Efficiency classes
IE4
Number of poles
4-pole, 6-pole, 12-pole
Applications
for industrial applications, for pump
Other characteristics
low-inertia, with built-in encoder
Power

Max.: 1,000 kW
(1,359.621 hp)

Min.: 3 kW
(4.079 hp)

Intensity

Max.: 1,900 A

Min.: 5.5 A

Torque

Max.: 8,595 Nm
(6,339.34667 ft.lb)

Min.: 22.9 Nm
(16.89017 ft.lb)

Rotational speed

Max.: 3,600 rpm
(22,619.47 rad.min-1)

Min.: 1,700 rpm
(10,681.42 rad.min-1)

Operating temperature

40 °C
(104 °F)

Description

SQ motors are permanent magnets synchronous motors designed for industrial applications. Main features are: very high torque density and efficiency. SQ motors are extremely compact and they generate higher power compared to squirrel cage asynchronous motors with same dimension. Conform to super premium efficiency IE4 class. Available in 3versions: 4, 6 and 12 poles. Four and six poles versions are designed for fluid motion, ventilation systems or pumps. Twelve pole versioni s designed to drive the operating machine directly, solution called “Direct-Drive”. Available in 7 frames with power from 3 up to 1000kW. Insulation class F, degree of protection IP54, cooling method IC416. On request are available: Large number of accessories like encoder,, tachogenerator, brake, sensors and relays. Low inertia version, SJ series. Pumps, Pumps, Plastic processing, Metal processing.
