Double-flange motor HYDROG series
ACasynchronous400 V

double-flange motor
double-flange motor
double-flange motor
Add to favorites
Compare this product

Go to the Sicme Motori website for more information

Characteristics

AC/DC
AC
Type
asynchronous
Voltage
400 V, 690 V
Protection class
IP54
Configuration
hollow-shaft, aluminum frame
Number of poles
4-pole, 6-pole
Cooling mechanism
self-ventilated
Applications
for pumps
Other characteristics
double-flange
Power

Max.: 15 kW
(20.394 hp)

Min.: 4 kW
(5.438 hp)

Intensity

Max.: 29.7 A

Min.: 5.3 A

Torque

Max.: 99.49 Nm
(73.3801 ft.lb)

Min.: 22 Nm
(16.2264 ft.lb)

Rotational speed

Max.: 1,450 rpm
(9,110.62 rad.min-1)

Min.: 950 rpm
(5,969.03 rad.min-1)

Operating temperature

40 °C
(104 °F)

Description

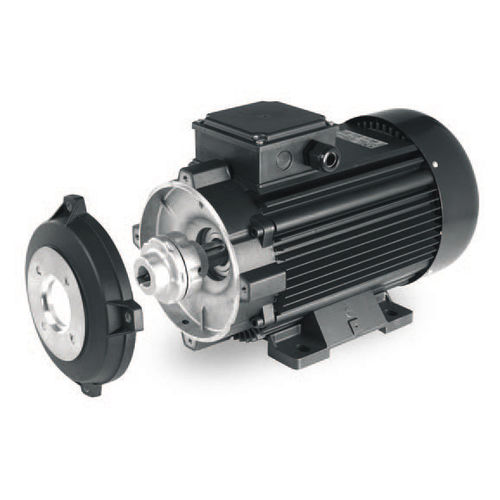

The AC motors for high pressure pumps with double flange have an elastic coupling for a quick separation between the motor and the pump for maintenance. The range has been selected by the largest High pressure cleaning machines manufacturers for the bigger output pumps. The motors are in B3 with hollow shaft shield to be directly coupled to the pumps. The range covers a large powers application from 4 kW up to 15 kW, in 4 and 6 pole On demand are available different voltages and frequency settings according to the destination market. All motors are electrically and mechanically customizable according to construction requirements. The main application for Ac Motors for High pressure pumps with double flange is, on the bigger high pressure cleaning machines and for car and truck wash systems.
