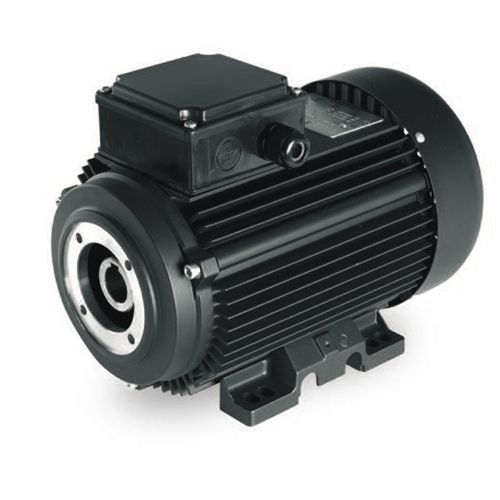

Pump motor HYDRO series
ACasynchronous400 V

pump motor
pump motor
pump motor
Add to favorites
Compare this product

Go to the Sicme Motori website for more information

Characteristics

AC/DC
AC
Type
asynchronous
Voltage
400 V, 230 V, 690 V
Protection class
IP54
Configuration
hollow-shaft, aluminum-frame
Number of poles
4-pole, 6-pole, 2-pole
Cooling mechanism
self-ventilated
Applications
for pumps
Other characteristics
custom
Power

Max.: 15 kW
(20.394 hp)

Min.: 1.1 kW
(1.496 hp)

Intensity

Max.: 22.7 A

Min.: 2.8 A

Torque

Max.: 72.7 Nm
(53.6208 ft.lb)

Min.: 6.34 Nm
(4.6761 ft.lb)

Rotational speed

Max.: 2,870 rpm
(18,032.74 rad.min-1)

Min.: 1,370 rpm
(8,607.96 rad.min-1)

Description

The AC motors for high pressure pumps are motors with hollow or solid shaft. The range has been developed to be selected in combination with the most popular high pressure pumps brands, worldwide. The motors are in B3 with flange B14 to be directly coupled with the pumps. The range covers a large powers application from 1, 1 kW up to 15 kW, in 2, 4 and 6 pole. On demand are available different voltages and frequency settings. All motors are electrically and mechanically customizable according to construction requirements. The main application for Ac Motors for High pressure pumps is on the high pressure cleaning machines and for car and truck wash systems. These motors are applied as well in misting systems.
