Cartridge dust collector Eco2v
reverse air cleaningcompactself-cleaning

cartridge dust collector
cartridge dust collector
cartridge dust collector
Add to favorites
Compare this product


reverse air cleaning
Other characteristics
compact, high-efficiency, self-cleaning, for welding fumes, for powder coating, laser

1,500 m³/h, 2,000 m³/h, 2,500 m³/h, 3,500 m³/h
(52,972.0001 ft³/h, 70,629.3334 ft³/h, 88,286.6668 ft³/h, 123,601.3335 ft³/h)

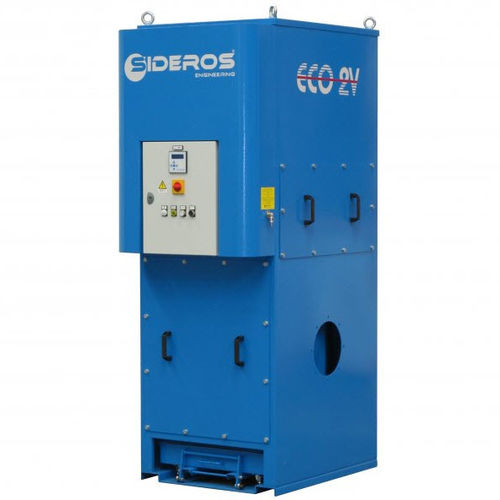

To complete ECOLINE dust collector range, we present ECO 2 VERTICAL, an efficient and compact unit suitable to be installed on welding, smoothing, grinding and cutting plants. Thanks to the mechanical pre-separation effect created by cartridge vertical positioning, the unit can accept also larger quantities of heavy dry dusts, thus ensuring a higher air flow. Installed power: 1.5 - 2.2 - 3 - 4 kW ECO 2 Vertical main features: • n°2 TOP GRADE vertically located cartridges for a more efficient filtration • Capability to accept higher quantities of dust guaranteeing at the same time higher air flows • Fan motor fully integrated in the roof sound-proof box Advantages: • Reduced surface on the ground as it develops vertically • High performances • Low noise level • Easy installation • Reduced energy consumptions • Accurate design and finishes For higher airflows required, Sideros Engineering proposes dust collectors equipped with 4, 6, 9, 12, 16, 24 cartridges up to 18000 m3/h (10,600 ft3/min).
