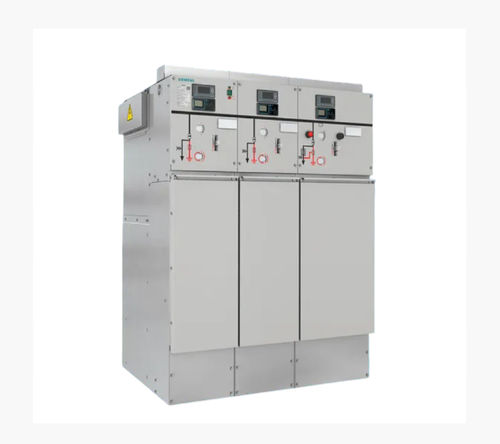

Secondary switchgear 8DJH
3-polemedium-voltagemetal-clad

secondary switchgear
secondary switchgear
secondary switchgear
secondary switchgear
secondary switchgear
Add to favorites
Compare this product


Characteristics

Type
secondary
Electrical characteristics
3-pole, medium-voltage
Configuration
metal-clad, gas-insulated
Applications
industrial, power distribution
Current

Max.: 25,000 A

Min.: 0 A

630 A

VAC

7.2 kV, 12 kV, 15 kV, 17.5 kV, 24 kV

Description

Rated voltage up to 24 kV Rated short-time withstand current up to 25 kA Rated normal current up to 630 A Single-busbar Gas-insulated medium-voltage switchgear for secondary distribution 8DJH switchgear is a factory-assembled, type-tested, 3-pole metal-enclosed single-busbar switchgear for indoor installation. 8DJH switchgear is used in public and industrial energy systems of the secondary distribution level. - Up to 17.5 kV, 25 kA, 630 A busbar, 630 A feeder - Up to 24 kV, 20 kA, 630 A busbar, 630 A feeder - Metal-enclosed - Gas-insulated - Hermetically enclosed - Factory-assembled, routine-tested according IEC 62271-200 - Type-tested according IEC 62271-200 Customer's Benefit: - Security of Operation, Reliability - Maintenance-free Design - Personal Safety - Environmental Independence - Compactness - Economy, Ecology
