Generator switchgear HB3-C
medium-voltagecompactvacuum

generator switchgear
generator switchgear
generator switchgear
generator switchgear
Add to favorites
Compare this product


Characteristics

Electrical characteristics
medium-voltage
Configuration
compact, vacuum
Applications
for generators
Other characteristics
horizontal
Primary current

Max.: 100,000 A

14,250 A, 15,000 A

Min.: 0 A

VAC

Max.: 24 kV

Min.: 0 kV

Description

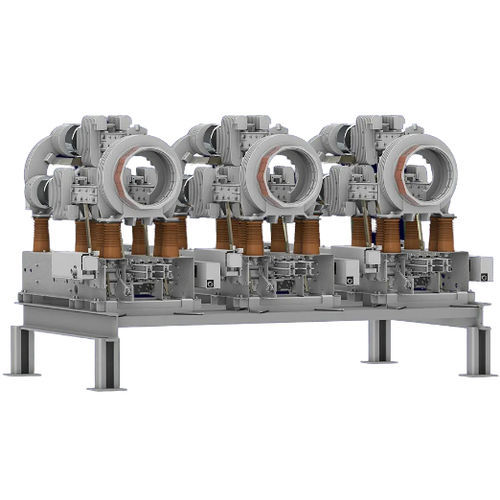

• Bolt-on solutions with rated nominal current up to 15,000 A • Unique horizontal and vertical installation capabilities • Common or individual supporting frame design • With optional integrated line and earth disconnecting switches • Save up to 75% of your OPEX by selecting vacuum technology With its HB3-Compact Siemens provides an unique generator circuit breaker solution to the most challenging constraints. It offers one of the highest level of customization: The HB3-C can be mounted either vertically or horizontally, its phase-to phase spacing and phase height axis can be adjusted to match perfectly the existing busbar connection points. Optionally, the circuit-breaker can be fitted with integrated line disconnecting switch and earth disconnecting switch on generator side and/or on transformer side. A compact design that meets all requirements: • Common or individual supporting frame design • Vertical or horizontal installation • Maintenance free vacuum technology with up to 10,000 operating cycles at full nominal rated current • Features full-spring operating mechanism stated to be the most reliable* way to operate a GCB with lifespan up to 20,000 operation • Equipped with sealed-for-lifetime** vacuum interrupter • Simplified footprint without dynamic forces during switching operations that facilitates designing and sizing of the GCB supporting structure • Effortless on-site erection thanks to forklift-ready design or retractable wheels • Can be delivered with integrated line disconnecting switch and earth disconnecting switch on generator side and / or transformer side
