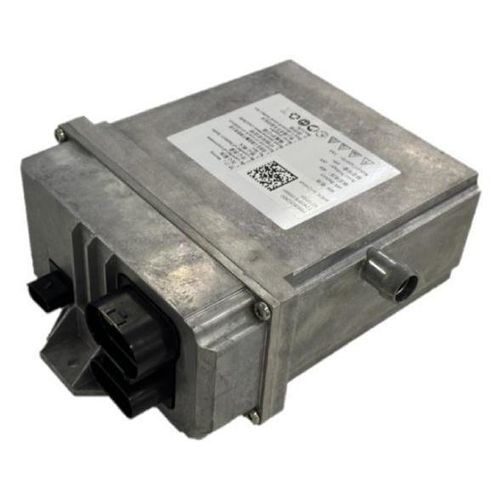

LFP battery module

48 Vfor electric vehiclesfor automotive applications

Product overview
48V automotive backup power supply designed to support low-voltage safety loads in electric vehicles and electrified commercial platforms. Compact modular LFP design with natural cooling and IP67 ingress protection for harsh environments.

Key features

• Intelligent controls: Four independent outputs with electronic switching; fast isolation of safety loads in case of short circuit or overcurrent.
• Long life: Ultra-long cycle life ≥ 8000 cycles, approximately twice that of mainstream alternatives, reducing total lifecycle cost compared to lead-acid solutions.
• Mature BMS platform: High-precision sampling, hardware coulometry, OCV and EKF calibration for accurate SOC/SOH estimation; MOSFET-based protection for millisecond fault response.
• Customizable: Modular options for enclosure, cell capacity (5–13Ah), BMS functions and communication interfaces to meet customer requirements.

Technical specifications

• Cell type: LFP (LiFePO4)
• Rated voltage: 48V
• Rated capacity: 5Ah–13Ah
• Operating temperature: -30℃–65℃
• Cooling method: Natural cooling
• Peak discharge capability: 50A for 12.5s
• Communication: LIN / CAN / CANFD
• OTA: Supported
• Safety level: QM – ASIL D
• Ingress protection: IP67
• SOC / SOH estimation accuracy: ±5%
• Current sampling accuracy: Range [-200A,200A] ≤ ±1% ±50mA; Range [-1500A,1500A] ≤ ±2% ±200mA
• Voltage sampling accuracy: In-range (−40℃ to +85℃) ≤ ±5 mV; Out-of-range ≤ ±10 mV
• Temperature sampling accuracy: ±2℃ (range −40℃ to +105℃)

Applications

• Backup power for 48V safety loads and control units
• Auxiliary power in electric and hybrid vehicles
• Commercial vehicles, buses and off-highway electrified equipment

Customization & compliance

• Structure, cell selection, BMS parameters and communication protocols are configurable to project specifications.
• Designed to meet automotive diagnostic and functional safety requirements up to ASIL D where specified.
