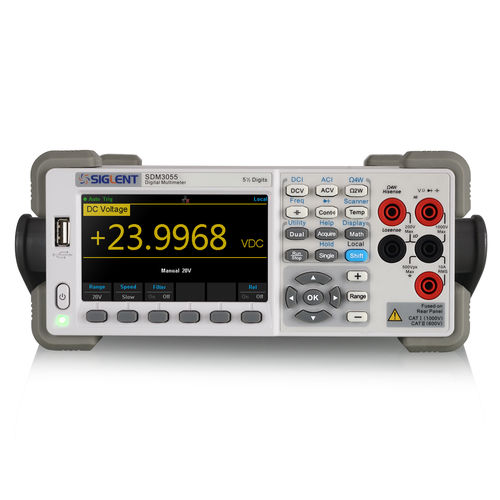

Digital multimeter SDM3055 Series
benchtopcat Iwith power measurement

Digital multimeter - SDM3055 Series - Siglent Technologies Co., Ltd - benchtop / cat I / with power measurement
Digital multimeter - SDM3055 Series - Siglent Technologies Co., Ltd - benchtop / cat I / with power measurement
Digital multimeter - SDM3055 Series - Siglent Technologies Co., Ltd - benchtop / cat I / with power measurement - image - 2
Digital multimeter - SDM3055 Series - Siglent Technologies Co., Ltd - benchtop / cat I / with power measurement - image - 3
Digital multimeter - SDM3055 Series - Siglent Technologies Co., Ltd - benchtop / cat I / with power measurement - image - 4
Digital multimeter - SDM3055 Series - Siglent Technologies Co., Ltd - benchtop / cat I / with power measurement - image - 5
Add to favorites
Compare this product

Characteristics

Display
digital
Form
benchtop
Safety rating
cat I
Additional features
with power measurement
Applications
industrial
Other characteristics
high-precision
Max DC voltage

Max.: 1,000,000 mV

Min.: 200 mV

Max AC voltage

Max.: 750,000 mV

Min.: 200 mV

Max DC current

Max.: 10,000 mA

Min.: 0.2 mA

Max AC current

Max.: 10,000 mA

Min.: 20 mA

Max resistance measure

Max.: 100,000,000 Ohm

Min.: 200 Ohm

Max capacity measure

Max.: 10,000,000 nF

Min.: 2 nF

Description

The SDM3055 / SDM3055-SC is a digital multimeter designed with 5 ½ digits readings resolution and dual-display, especially ftting to the needs of high-precision, multifunction and automatic measurement. Key Features •Built-in cold terminal compensation for thermocouple temperature measurements •With easy, convenient and flexible PC software: EasyDMM •Standard interfaces: USB Host, LAN ( Optional Accessories USB-GPIB Adapter ) •Support remote control operation via SCPI commands. Compatible with commands of main stream multimeters
