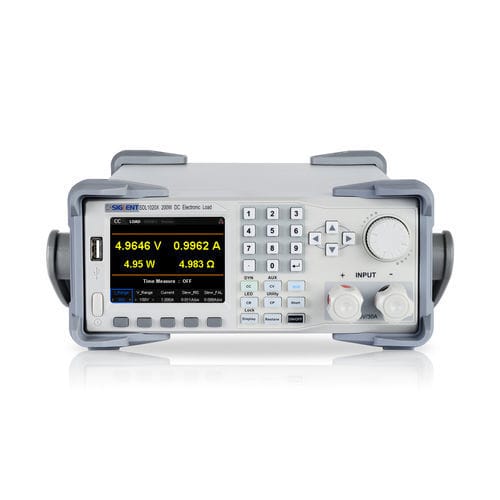

SDL1000X/SDL1000X-E series Programmable DC Electronic Load has a 3.5 inch TFT-LCD display, a user-friendly interface and superb performance specifications. The SDL1020X/SDL1020X-E models feature an input range of 150 V/30 A 200 W while the SDL1030X/SDL1030X-E have an input range of 150 V/30 A 300 W. The SDL1000X series leads with measurement resolution of 0.1 mV/0.1 mA and the base SDL1000X-E series resolution is 1 mV/1 mA and adjustable current rise times from 0.001 A/μs~2.5 A/μs. For remote communication and control, the SDL series includes RS232/USB/LAN interface types. The SDL1000X series delivers stability over a wide range of applications and can meet all kinds of testing requirements. including: Power, battery/handheld device design, industry, LED lighting, automotive electronics, and aerospace.
Key Features
•4 static modes / Dynamic mode: CC/CV/CR/CP
•CC Dynamic mode: Continuous, pulsed, toggled
•CC Dynamic mode: 25 kHz, CP Dynamic mode: 12.5 kHz, CV Dynamic mode: 0.5 Hz
•Measuring speed of voltage and current: up to 500 kHz
•Adjustable current rise time range: 0.001 A/us~2.5 A/us
•Min. readback resolution: 0.1 mV, 0.1 mA
•Short-circuit, Battery test, CR-LED mode, and factory test functions
•4-wire SENSE compensation mode function
•List function supports editing as many as 100 steps
•Program function supports 50 groups of steps
•OCP, OVP, OPP, OTP and LRV protection
•External analog control
•Voltage, Current monitoring via 0-10 V
•3.5 inch TFT-LCD display, capable of displaying multiple parameters and states simultaneously
•Built-in RS232/USB/LAN communication interface, USB-GPIB module (optional)
