Analog signal conditioner ASA110H
for displacement sensors

analog signal conditioner
analog signal conditioner
analog signal conditioner
Add to favorites
Compare this product


Characteristics

Options
analog
Applications
for displacement sensors

Description

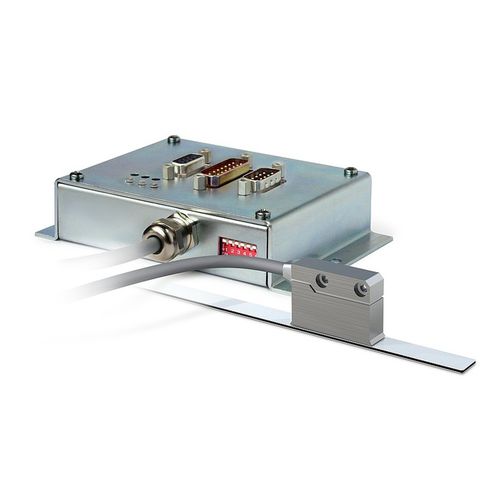

Translation module ASA110H Quasi-absolute, battery-buffered translation module Profile ASA110H: Max. resolution 0.2 μm (LD) Repeat accuracy ±5 μm SSI or RS485 interface Scale MBA110 Reading distance ≤0.4 mm Compact, absolutely measuring unit with hard-wired sensor Maintenance-free backup battery Option: digital LD interface Option: analog 1 VSS interface (period length 1 mm) Mechanical data Feature - Technical data - - Additional information - - Housing - Steel sheet - - electrogalvanized - - - zinc die-cast - - sensor - - Cable length - £6 m - - - - Cable sheath - PVC suitable for drag-chain use - - £1.000.000 with bending radius = 8x cable diameter and 20 =C - - ■ Travel speed - Travel speed Vmax [m/s] - - - - Resolution [pm] 0.5 - 0.80 - 0.32 - 0.15 - 0.06 - 0.02 1 - 4.00 - 1.60 - 0.72 - 0.32 - 0.12 10 - 8.00 - 8.00 - 7.20 - 3.20 - 1.25 12.5 - 8.00 - 8.00 - 8.00 - 4.00 - 1.60 Puise interval [ps] - 0.2 - 0.5 - 1.1 - 2.5 - 6.3 Counting frequency [kHz] - 1250.00 - 500.00 - 230.00 - 100.00 - 40.00 Electrical data Feature - Technical data - Additional information Operating voltage - 24 V DC ±20 % - reverse polarity protected Current consumption - <150 mA - Battery service life - 10 year(s) - atTy = 20 =C, according to manufacturer - - spécification System data - - Feature - Technical data - Additional information Resolution - 1 pm fix - SSI - 20.2 pm - LD - 1 mm period length - 1Vss System accuracy - ±(0.025 + 0.01 x L) mm, L in m - at Tu = 20 =C (L = length per meter or part thereof) Repeat accuracy - ±5 pm - Measuring range - 4000 mm - others on request Travel speed - 20.5 nVs - SSI absolute value - 28 nVs - Ambient conditions - - Feature - Technical data - Additional information Ambient température - 0 ... 60 5C - Storage température - -20 ... 70 *C - Relative humidity - 295% - translation module, condensation inadmissible
