single-point lubricator / gas-driven / electrochemical / for linear slides



  • Type:


  • Technology:

    gas-driven, electrochemical

  • Applications:

    for linear slides, for precise lubrication, for hazardous areas, chain, for bearings

  • Other characteristics:

    explosion-proof, automatic

  • Capacity:

    Max.: 15 ml (1 US fl oz)

    Min.: 0 ml (0 US fl oz)

  • Pressure:

    Max.: 5 bar (72.5 psi)

    Min.: 0 bar (0 psi)

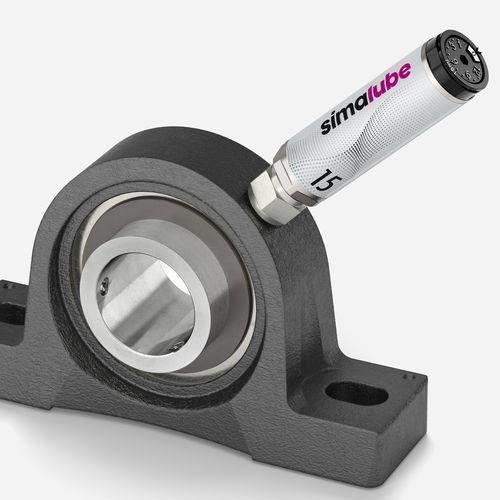

The smallest lubricator performs like the biggest: The new simalube 15 ml lubricator

simatec has filled an important gap in automatic lubrication with the launch of a worldwide new lubricator. With only 15 ml of contents the smallest member expands the simalube product family and supplies lubrication points that until now had no adequate solution.

Where necessary space is lacking, the simalube 15 ml is the perfect answer
With its slim aluminium housing (ø 22 mm, height 70 mm) the 15 ml can be installed where other lubricators are too big. The smallest automatic lubricator is the perfect choice for very tight spaces.

Big impact for small lubrication requirements
With only 15 ml of contents grease or oil the new lubricator offers a minimal, but continual amount of lubrication during the desired time setting (1-12 months). For lubrication points which only require a small amount of lubrication the simalube replaces manual lubrication, reduces maintenance costs, and extends the life of machine parts. Overheated bearings, machine failures, and downtimes all due to over lubrication now belong to the past! Along with many other applications the simalube 15 ml is especially suitable for linear guides, electric motors, pumps, ball screws, and small bearings
