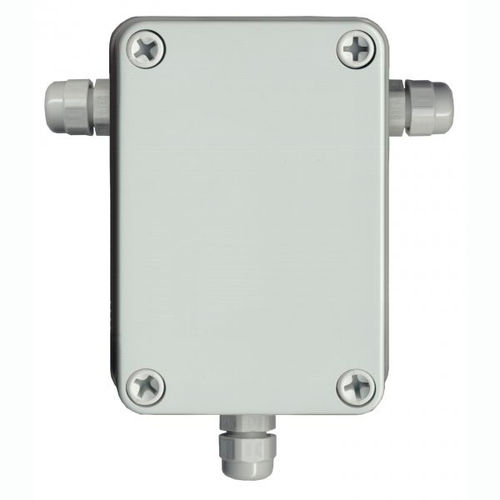

Wall-mount power supply TRS-09a series

AC/ACregulatedstabilized

supporting power supply of TRS system current efficiency 200 mA TRS-09a is a supporting power supply for the TRS System which supplies stabilized direct voltage 11,5V. It can work in two modes: as a controlled supply (switched on with external voltage 7...12V) or a non-controlled supply. The configuration is selected by means of a link. Current efficiency is 200 mA. The supply is resistant to output voltage short circuit. The device is located in a casing that completely protects it against dust or low pressure streams of water. Power supply - 230V AC Operating temperature - 0...+50°C -20…+50°C Case material - ABS Mounting - wall Case dimensions - 110 x 80 x 67 mm Weight : 365 g Output supply voltage : 7 V ÷ 12 V, max. 2 mA; supply output voltage 11,5 V ±5% Storage temperature : -10°C ÷ +70°C or -20°C ÷ +70°C (with option 08) Case dimensions : 110 x 80 x 67 mm, 130 x 105 x 55 mm with chokes Mounting : to wall, 4 bolts Ø3 mm
