ambient air temperature transducer / semiconductor / wall-mount / compact
TRS-01a

Add to MyDirectIndustry favorites
Compare this product Don’t compare this product

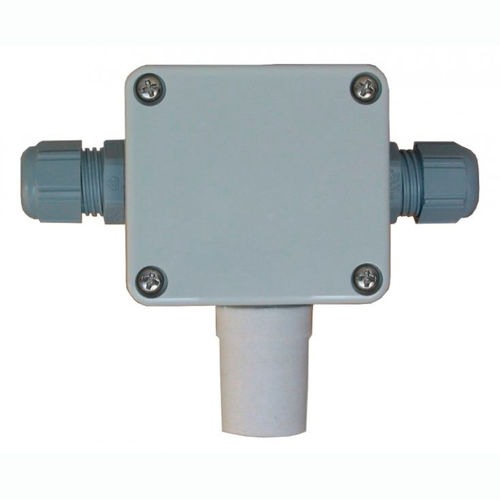

ambient air temperature transducer ambient air temperature transducer - TRS-01a
{{requestButtons}}

Characteristics

  • Technology:

    semiconductor

  • Mounting:

    wall-mount

  • Other characteristics:

    compact, IP65, IP30

  • Applications:

    ambient air, for food applications, room

  • Temperature:

    Max.: 85 °C (185 °F)

    Min.: -40 °C (-40 °F)

Description

The ambient temperature transducer is a basic device of the TRS System. It is designed particularly to measure temperature in rooms where food products are manufactured and stored. It has a small plastic casing. It measures temperature within the range of -40°C to +85°C.

Inputs : temp. sensor: semiconductor integrated circuit; measurement range -40°C ÷ +85°C; measurement error within th range -10°C ÷ +50°C: ±0,5°C

Power consumption : 4,2 mA; during Modbus transmission: do 60 mA

Operating temperature : -40°C ÷ +85°C

Protection class : IP 65 (case), IP 30 (sensor)

Power supply : typ. 10V DC (9V DC ÷ 12V DC)

Communication interface : RS-485 / Modbus RTU

Storage temperature : -40°C ÷ +85°C

Case dimensions : 63 x 58 x 35 mm

Mounting : to wall, 2 M3 bolts

Transmission parameters : 9600 bit/sec

Number of modules in 1 network : max. 127

Connection cable: 4 conductors (2 supply conductors + 2 data transmission conductors)
