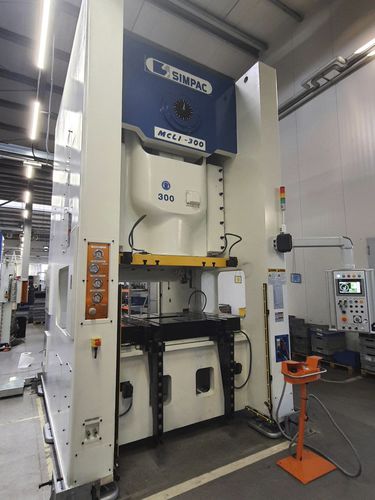

Mechanical press MC series

formingstampingbending

Part Size: small to medium Slide Kinematics: crank motion (MC; MCP) or link motion (MCL) Application: blanking, stamping, bending, embossing & drawing Description These compact presses are optimized for a wide range of small- to medium-sized parts. Due to the drive-related slide kinematics, the MCL Series, in particular, is ideal for drawn parts. The reduced forming speed increases the part quality and protects the press and dies. Features & Benefits Flexible installation options as a single press in progressive or transfer mode or as a fully automated press line. The compact design requires little floorspace and no foundation for presses below 600 tons. The very solid, low-stress annealed press bodies are FEM-calculated and optimized by “hot-spot analysis” areas subject to higher loads. Motor, clutch/brake unit, lubrication system, and controls are of Korean origin and guarantee a long service life, maximum dynamics, and a supply of spare parts. When it comes to higher-strength materials, the slide guiding system ensures a high level of tilting rigidity and reduces the cutting impact during the cut through process.
