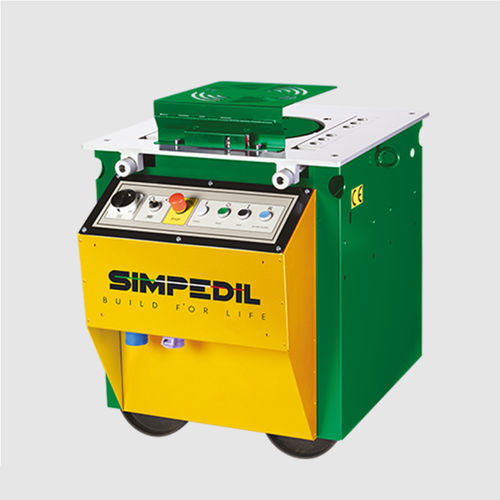

Iron cutting machine TP 32/36 EVO
knifebarbending

iron cutting machine
iron cutting machine
iron cutting machine
iron cutting machine
iron cutting machine
iron cutting machine
iron cutting machine
Add to favorites
Compare this product

Characteristics

Material
for iron
Technology
knife
Product handled
bar
Associated function
bending
Applications
for concrete reinforcements
Other characteristics
compact, electric, combined
Tube diameter

Max.: 28 mm (1 in)

Min.: 14 mm (1 in)

Description

The Combined TP32/36 Evo is a full version of Cutting and Bending unit designed for maximum cutting Ø 28 mm (1.10 inch) - bending Ø 34 mm (1.34 inch). Features: • High functionality and efficient performance; • Designed for the international standard •The larger Ø 365 mm rotating plate can support compasses up to Ø 225 mm to achieve large radius curvature without the need for additional equipment. • Control of the bending and cutting process with an easy-to-use start and stop button or a foot switch included as standard feature; • The gear reducer and cutting arm made of a ductile cast iron monoblock, with a higher resistance of the iron. The total absence of welding gives the product considerable resistance and strength.. • Easy to use, even unskilled workers can use this machine without damage. • Double direction: the turntable works both clockwise and counterclockwise. • Mounted on four wheels: this machine can easily be moved to work sites. • Wide standard equipment supply. • 02 year warranty on all mechanical components.
