Data transfer software module Composites Modeler for Abaqus/CAE

modelingvisualizationsimulation

Overview
Advanced model building for ply and fiber materials integrated within Abaqus/CAE.

Product description

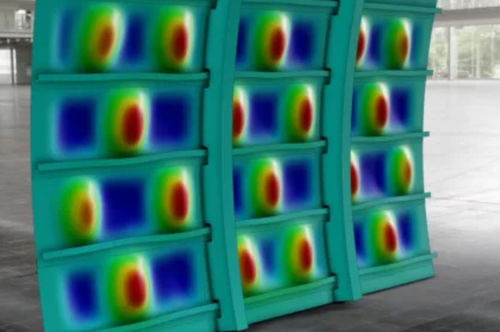

Composites Modeler for Abaqus/CAE is a plugin that complements and extends Abaqus/CAE ply modeling capabilities. It provides validated fiber simulation and advanced model-building tools that transfer accurate fiber angles and ply thicknesses directly into Abaqus simulations. The tool supports rapid review and modification of composite models, generates manufacturing data to align the analyzed model with the final structure, and integrates with Simulayt Layup Pipeline for enterprise workflows.

Key benefits

• Prevents specification of non‑manufacturable plies and structures to avoid costly rework.
• Improves model fidelity and reduces setup time to accelerate design iterations.
• Enables integration of analysis, design and manufacture across the enterprise for efficient development.

Technical specifications

• Integration: plugin for Abaqus/CAE for ply and fiber modeling.
• Data transfer: accurate propagation of fiber angles and ply thicknesses to Abaqus simulations.
• Capabilities: validated fiber simulation and advanced model-building tools.
• Manufacturing support: generates manufacturing data to ensure model-to-structure alignment.
• Enterprise integration: direct connection with Simulayt Layup Pipeline for streamlined data exchange.
• Target use: ply & fiber material modeling, composite design iteration, and manufacturing data generation.
