Oil purification system NSH-TF-A series

continuousfor industrial applications

General

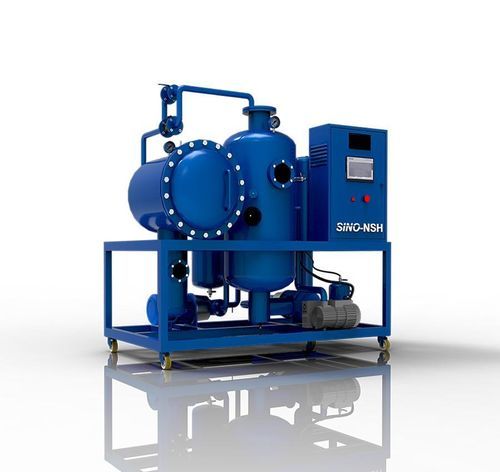

Automatic Control Vacuum Turbine Oil Purifier
NSH-TF-A is a fully automatic purifier with a vacuum system, which is suitable for all turbine oils. It is used to remove moisture, gasses, particulate matter, etc. Customized solutions are acceptable.

• Brand Name Sino-NSH
• Series: TF-A
• Treating Oil: Turbine oil
• Function: Dehydration, Degassing, Impurities-removal
• Flow Rate: 1200-18000 Liter/Hour
• Power Supply: 380VAC / 3Phase / 50Hz (or tailorable to yours)
• Delivery Time: 10 working days
• Supply Ability: 50 sets per month

Specifications

• Sino-NSH-TF-A is a fully automatic dehydration and degassing unit. It could be tailored according to practical usage of end-user on either functional or operative consideration.
• Sino-NSH-TF-A utilizes the brand Programmable Logic Controller (P.L.C.) and a series of instrumentations, alarms and interlocks to provide a fully automatic operation. Manual control of various functions is provided as required. Several Pilot Lights are provided to indicate operational status of key components and alarm conditions.
• Sino-NSH-TF-A is particularly suitable for purifying turbine lubricating oil. It also applies to treat hydraulic, coolant oil and other lubrication in which contain large amount of water and others such as vapor, impurities, sludge, dielectric and colloid.

Features

• 1. Eliminate soluble and dissolved water effectively and demulsify rapidly TF series can not only separate large quantity of water but also remove trace of water from oil. Fitted with specially made demulsifying device (water separator),it is capable of making turbid emulsified oil very clear.
• 2. High effectively purify matters in oil such as impurities, sludge etc.The automatic backwash filtering system can remove large amount of particulate matters and fine filter system can remove tiny particles.
• 3. High automation, stability and operation online High automation, small size, light weight, safety and reliability. Installed with infrared liquid level automatic controller, the purifier machine will run automatically and easy handling.

Oil Data After Purification
Water Content | unit | ≤ 100 ppm
Cleanliness | NAS 1638 | ≤ 6
Impurity Size | μm | ≤ 5
Emulsification Value | min | ≤ 15

Machine Specification
Item | Unit | TF-20 | TF-30 | TF-50 | TF-75 | TF-100 | TF-150 | TF-200 | TF-300
Flow Rate | L/H | 1200 | 1800 | 3000 | 4500 | 6000 | 9000 | 12000 | 18000
Vacuum Range | MPa | -0.06 ~ -0.096 (approx.) across models
Working Pressure | MPa | ≤ 0.3 (across models)
Water Ratio | PPM | ≤ 100
Impurity Size | μm | ≤ 5
Clearness | NAS | ≤ 6
Temperature Range | °C | 40 - 80
Demulsifying Value | min | ≤ 15
Power Supply | V | Fully customizable (standard example: 380VAC / 3Phase / 50Hz or tailorable)
Working Noise | dB | ≤ 70 ~ ≤ 75 (depending on model)
Heating Power | kW | 15 | 24 | 32 | 40 | 48 | 72 | 96 | 120
Total Power | kW | 18 | 27 | 32 | 40 | 53 | 78 | 103 | 129
Inlet(Outlet) Diameter | mm | 25 | 25 | 32 | 35 | 40 | 50 | 65 | 65
Net Weight | Kg | 300 | 300 | 450 | 550 | 650 | 750 | 900 | 1500
Size (L x W x H) | mm | 1300 x 900 x 1460 | 1300 x 900 x 1460 | 1450 x 1000 x 1510 | 1550 x 1100 x 1510 | 1650 x 1150 x 1560 | 1850 x 1250 x 1610 | 2000 x 1350 x 1660 | 2400 x 1700 x 1760

Extra Options

• Base frame with caster wheels
• Metallic enclosure cover on caster wheels
• Metallic enclosure cover on single-axle trailer
• Base frame on double-axle trailer
• Metallic enclosure cover on double-axle trailer
• Metallic enclosure cover and operation room on double-axle trailer
