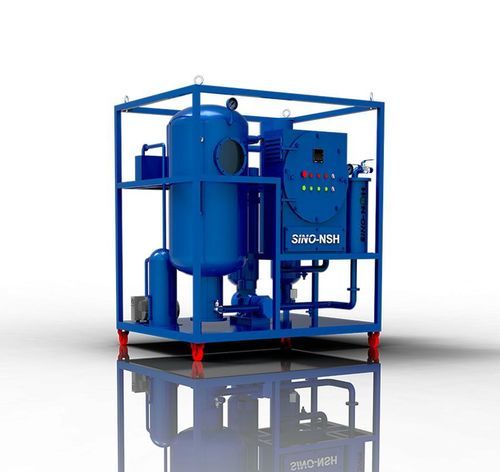

Oil purification system NSH-TF-E series

for industrial applications

General
Explosion-proof Vacuum Turbine Oil Purifier
NSH-TF-E is Explosion-proof type designed for flammable and combustible working conditions in power plant. It is a vacuum purification plant which is used for turbine oils and is able to remove large large water, gasses, particulate matter, etc. Customized solutions are acceptable.

• Brand Name:Sino-NSH
• Series:TF
• Treating Oil:Turbine oil
• Function:Dehydration, Degassing, Impurities-removal
• Flow Rate:1200-18000 Liter/Hour
• Power Supply:380VAC / 3Phase / 50Hz (or tailorable to yours)
• Delivery Time:10 working days
• Supply Ability:50 sets per month

Specifications
1. Filtrating turbine oil.
2. Can separate large quantity of water.
3. The automatic backwash filtering system.
TF series is particularly suitable for purifying turbine lubricating oil. It also applies to treat hydraulic, coolant oil and other lubrication in which contain large amount of water and others such as vapor, impurities, sludge, dielectric and colloid.
TF series will result in the improvement of the properties of turbine oil or other lubrication and extend the maintenance period of turbines or other equipment which have lubrication system and keep them operate in good condition.


Features
1. Eliminate soluble and dissolved water effectively and demulsify rapidly
TF series can not only separate large quantity of water but also remove trace of water from oil. Fitted with specially made demulsifying device (water separator),it is capable of making turbid emulsified oil very clear.
2. High effectively purify matters in oil such as impurities, sludge etc.
The automatic backwash filtering system can remove large amount of particulate matters and fine filter system can remove tiny particles.
3. High automation, stability and operation online High automation, small size, light weight, safety and reliability. Installed with infrared liquid level automatic controller, the purifier machine will run automatically and easy handling.

Machine Specification
Item | Unit | TF-20 | TF-30 | TF-50 | TF-75 | TF-100 | TF-150 | TF-200 | TF-300
Flow Rate | L/H | 1200 | 1800 | 3000 | 4500 | 6000 | 9000 | 12000 | 18000
Vacuum Range | MPa | -0.06 ~ -0.096 (approx.)
Working Pressure | MPa | ≤ 0.3
Water Ratio | PPM | ≤ 100
Impurity size | µm | ≤ 5
Clearness | NAS | ≤ 6
Temperature Range | °C | 40–80
Demulsifying Value | Min | ≤ 15
Power Supply | V | Fully customizable (typ. 380 VAC / 3-phase / 50 Hz)
Working Noise | dB | ≤ 70 (some units ≤ 75)
Heating Power | kW | 15 | 24 | 32 | 40 | 48 | 72 | 96 | 120
Total Power | kW | 18 | 27 | 32 | 40 | 53 | 78 | 103 | 129
Inlet(Outlet) Diameter | mm | 25 | 25 | 32 | 35 | 40 | 50 | 65 | 65
Net Weight | Kg | 300 | 300 | 450 | 550 | 650 | 750 | 900 | 1500
Size (Length x Width x Height) | mm | Length: 1300,1300,1450,1550,1650,1850,2000,2400 | Width: 1900,900,1000,1100,1150,1250,1350,1700 | Height: 1460,1460,1510,1510,1560,1610,1660,1760

Oil Data After Purification

• Water content: ≤ 100 PPM
• Filter fineness: ≤ 5 µm (optionally ≤ 1 µm)
• Dielectric strength: ≥ 75 kV
• Degassing: ≤ 0.1%
