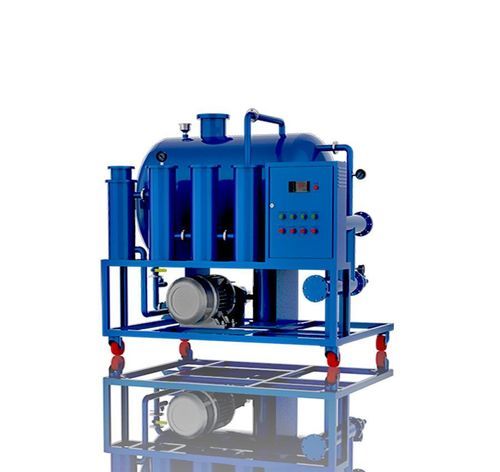

Oil purification system NSH-TF-Z series

continuousfor industrial applications

General
Coalescence Turbine Oil Purifier
NSH-TF-Z combines the latest innovations in coalescing separation technology and microglass filtration media in one system, using a specially designed filter element that can effectively and quickly separate water and oil, break emulsions, and remove particulate pollutants.

• Brand Name:Sino-NSH
• Series:TF
• Treating Oil:Turbine oil
• Function:Dehydration, Degassing, Impurities-removal
• Flow Rate:3000-12000 Liter/Hour
• Power Supply:380VAC / 3Phase / 50Hz (or tailorable to yours)
• Delivery Time:10 working days
• Supply Ability:50 sets per month

Specifications

• Sino-NSH-TF-Z is a dehydration and filtration unit, especially suits for purification of turbine oil and fuel, etc.
• Sino-NSH-TF-Z combines the latest innovations in coalescence separation technology and micro-glass filter media in one system to achieve optimal fluid cleanliness. With specially designed filter elements, it can efficiently separate water from oil quickly, break the emulsification, as well as remove particulate pollutants. After separation, the water content can be reduced to less than 100 PPM, and the cleanliness can reach or better than NAS 4 ~ 6 Grade.
• Sino-NSH-TF-Z can effectively save operating costs as no heating or vacuum is required, and it is designed for continuous operation and unattended operation.

Oil Data After Purification
Water Content | ppm | ≤ 100
Cleanliness | NAS 1638 | ≤ 6
Continuous working time | hour | ≥ 300
Mean time between failures | hour | ≥ 9000

Machine Specification
Item | Unit | TF-Z-3 | TF-Z-6 | TF-Z-8 | TF-Z-10 | TF-Z-12
Flow Rate | L/H | 3000 | 6000 | 8000 | 10000 | 12000
Total Power | kW | 1.5 | 2.2 | 3 | 4 | 5
Power Supply | V | Fully customizable per model
Inlet Diameter | mm | 32 | 44 | 48 | 50 | 50
Outlet Diameter | mm | 25 | 25 | 44 | 44 | 44
Net Weight | Kg | 700 | 950 | 1100 | 1200 | 1300
Size - length (mm) | mm | 1350 | 1900 | 2000 | 2150 | 2300
Size - width (mm) | mm | 950 | 1000 | 1200 | 1250 | 1300
Size - height (mm) | mm | 1500 | 1600 | 1700 | 1700 | 1800
