Hydrocarbon distillation unit NSH-GER series

for petroleum productsautomaticvacuum

General

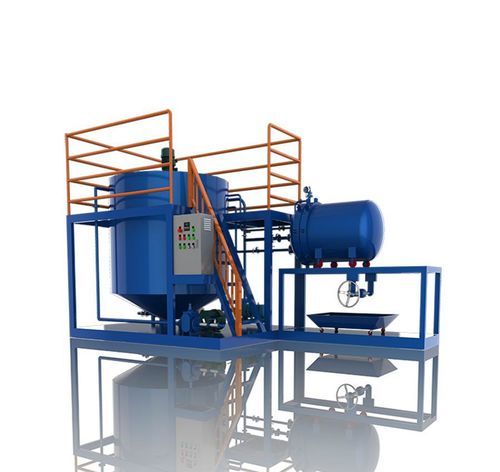

Aged Engine Oil Regeneration Plant
NSH-GER is designed with the combination technology of physical and chemical processing, can effectively remove aging products and contaminants from aged black engine oils.

• Brand Name:Sino-NSH
• Series:GER
• Treating Oil:Engine oi, Motor oil
• Function:Waste oil regeneration
• Flow Rate:2000-10000 Liter/day
• Power Supply:380VAC / 3Phase / 50Hz (or tailorable to yours)
• Delivery Time:20 working days
• Supply Ability:10 sets per month

Application

• Used oil regeneration system is suitable to regenerate used internal-combustion engine oil including diesel engine oil, gasoline engine oil, and used hydraulic oil, other used lubrication oil of machinery.
• Used oil regeneration system can effectively remove colloid, oxid, acid, pitch, particles, impurities, water, gas in the used oil. Specially, it can restore the color of used oil and remove the scent rapidly.

Edges
1 Used oil regeneration system
2 Stainless steel filters. Automatic reverse-washing system. Two main filtering systems to ensure continuous work.
3 Heat preservation material can keep heating quite efficient.
4 No acid used during operation. More environmentally friendly.
5 Small size, light weight and low noise.

Machine specifications

• Flow rates (L/h): GER-1 2000 | GER-2 4000 | GER-3 6000 | GER-4 8000 | GER-5 10000
• Vacuum range: -0.092 to -0.099 MPa (max vacuum ≤ 50 Pa)
• Working pressure: ≤ 0.3 MPa
• Temperature range: 45–85 °C
• Heating power (kW): 72 | 96 | 144 | 192 | 192
• Total power (kW): 81 | 106 | 155 | 203 | 203
• Inlet / Outlet diameter: 40 mm
• Net weight (kg): 2500 | 3500 | 4500 | 5500 | 6000
• Dimensions (mm): Reaction system 3500×1900×2100 – 5600×2100×2300; Filtration system 2×2800×1400×2000 – 2×3200×1600×2100; Exhaust gas processing 950×2000×3300
• Power supply: 380VAC / 3Phase / 50Hz (customizable)
