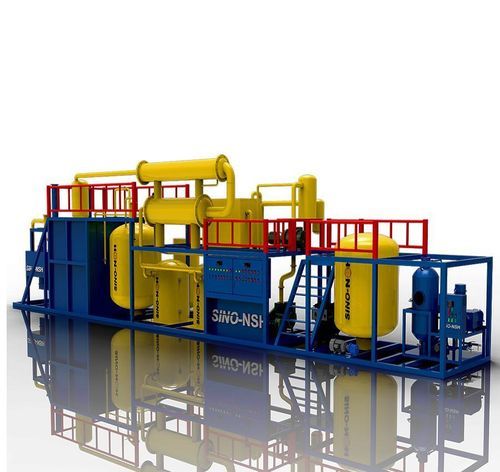

Hydrocarbon distillation unit NSH-GED-WB series

for petroleum productsvacuum

General
Waste Oil to Base Oil Vacuum Distillation Plant
NSH-GED-WB is designed to process and recycle waste lubrication oils by vacuum distillation techonology, thereby to acquire high quality base oil.

• Brand Name:Sino-NSH
• Series:GED-WB
• Treating Oil:Waste / Used lubrication oil
• Function:Waste oil distillation to be new
• Flow Rate:1-20 Ton/Day
• Power Supply:380VAC / 3Phase / 50Hz (or tailorable to yours)
• Delivery Time:20 working days
• Supply Ability:10 sets per month

Description
There is non-hydrocarbon, alkene, polycyclic aromatic hydrocarbon, metal hydronium, impurities, metal particles, asphaltene and colloid etc. harmful materials existed in used oil. These harmful substances are mutually as initiator, providing reagent and catalyst to each other. They’re oxidating, polymerizing under light, certain temperature, oxygen, the invariability of oil is destroyed and the oil appear as dark color and depositing.

Technological Process
The used oil firstly passes through filter for mechanical impurities removing and then flown in to physicochemical reaction kettle and react with catalyst water solution under normal temperature and pressure. The catalyzed oil will be pumped in to intermittent distillation kettle, which will be distilled under vacuum to have water, fuel oil, different cuts of lube base oil fractions cooled and collected. The residues could be used as fuel. Recirculating heating method is utilized in distillation, heat source connections could be electric power, fuel, natural gas, and coal etc. as per customer’s requirement. In addition, the waste gas from vacuum system will be purified before emission.

Machine specifications

• Capacity (T/D): GED-WB-1: 1 | GED-WB-2: 2 | GED-WB-3: 3 | GED-WB-4: 4 | GED-WB-5: 5 | GED-WB-10: 10 | GED-WB-20: 20
• Working pressure: -0.09 MPa (applies to all models)
• Temperature range: 0–450 °C (applies to all models)
• Power supply: Fully customizable (applies to all models)
• Heating method: Fuel, gas or electric (recirculating heating)
• Total power (kW): GED-WB-1: 28 | GED-WB-2: 40 | GED-WB-3: 50 | GED-WB-4: 60 | GED-WB-5: 60 | GED-WB-10: 60 | GED-WB-20: 80
• Land area (m²): GED-WB-1: 40 | GED-WB-2: 50 | GED-WB-3: 70 | GED-WB-4: 90 | GED-WB-5: 100 | GED-WB-10: 150 | GED-WB-20: 200
• Weight (Ton): GED-WB-1: 3 | GED-WB-2: 5 | GED-WB-3: 6 | GED-WB-4: 8 | GED-WB-5: 10 | GED-WB-10: 14 | GED-WB-20: 22
• Recovery rate: ≥85% (applies to all models)
• Output oil appearance: Clear bright (applies to all models)
