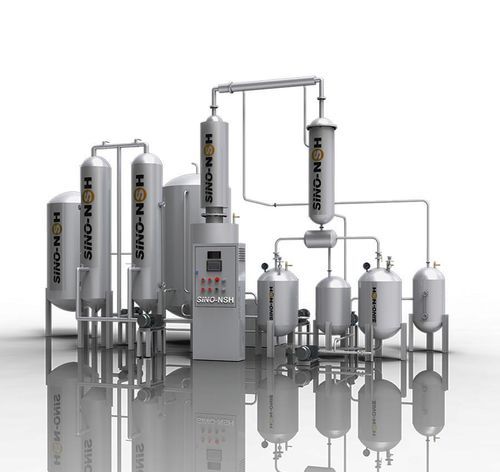

Hydrocarbon distillation unit NSH-GED-WD serieswaterfor petroleum productsvacuum
Add to favorites
Compare this product
Characteristics
- Applications
- water, for hydrocarbons, for petroleum products
- Other characteristics
- vacuum
Description
General
Waste Oil to Diesel Oil Distillation Plant
NSH-GED-WD is a waste oil distillation system that cracks waste oil to diesel fuel.
Description
There are non-hydrocarbon, alkene, polycyclic aromatic hydrocarbon, metal hydronium, impurities, metal particles, asphaltene and colloid etc. harmful materials existed in used oil. These harmful substances are mutually as initiator, providing reagent and catalyst to each other. They’re oxidating, polymerizing under light, certain temperature, oxygen, the invariability of oil is destroyed and the oil appear as dark color and depositing.
Technological Process
The used oil firstly passes through filter for mechanical impurities removing and then flown in to physicochemical reaction kettle and react with catalyst water solution under normal temperature and pressure. The catalyzed oil will be pumped in to intermittent distillation kettle, which will be distilled under vacuum to have water, fuel oil, different cuts of lube base oil fractions cooled and collected. The residues could be used as fuel. Recirculating heating method is utilized in distillation, heat source connections could be electric power, fuel, natural gas, and coal etc. as per customer’s requirement. In addition, the waste gas from vacuum system will be purified before emission.
Models & capacities
Waste Oil to Diesel Oil Distillation Plant
NSH-GED-WD is a waste oil distillation system that cracks waste oil to diesel fuel.
- Brand Name:Sino-NSH
- Series:GED-WD
- Treating Oil:Waste / Used lubrication oil
- Function:Waste oil distillation to be new
- Flow Rate:1-20 Ton/Day
- Power Supply:380VAC / 3Phase / 50Hz (or tailorable to yours)
- Delivery Time:20 working days
- Supply Ability:10 sets per month
Description
There are non-hydrocarbon, alkene, polycyclic aromatic hydrocarbon, metal hydronium, impurities, metal particles, asphaltene and colloid etc. harmful materials existed in used oil. These harmful substances are mutually as initiator, providing reagent and catalyst to each other. They’re oxidating, polymerizing under light, certain temperature, oxygen, the invariability of oil is destroyed and the oil appear as dark color and depositing.
Technological Process
The used oil firstly passes through filter for mechanical impurities removing and then flown in to physicochemical reaction kettle and react with catalyst water solution under normal temperature and pressure. The catalyzed oil will be pumped in to intermittent distillation kettle, which will be distilled under vacuum to have water, fuel oil, different cuts of lube base oil fractions cooled and collected. The residues could be used as fuel. Recirculating heating method is utilized in distillation, heat source connections could be electric power, fuel, natural gas, and coal etc. as per customer’s requirement. In addition, the waste gas from vacuum system will be purified before emission.
Models & capacities
- GED-WD-1 — Capacity 1 T/D, Total power 8 kW, Footprint 25 m², Weight 2 T
- GED-WD-2 — Capacity 2 T/D, Total power 10 kW, Footprint 30 m², Weight 3 T
- GED-WD-3 — Capacity 3 T/D, Total power 12 kW, Footprint 50 m², Weight 5 T
- GED-WD-4 — Capacity 4 T/D, Total power 14 kW, Footprint 65 m², Weight 6 T
- GED-WD-5 — Capacity 5 T/D, Total power 16 kW, Footprint 70 m², Weight 10 T
- GED-WD-10 — Capacity 10 T/D, Total power 18 kW, Footprint 100 m², Weight 14 T
- GED-WD-20 — Capacity 20 T/D, Total power 20 kW, Footprint 150 m², Weight 20 T
