Performance test bench ZYDL series

compressionvibrationvibration

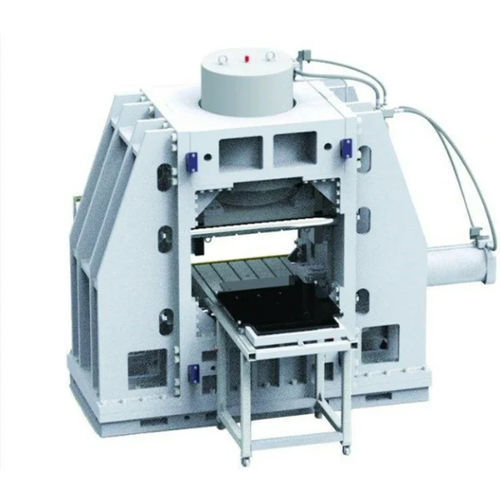

Rubber bearing compression shear testing machine is mainly used for conventional basin rubber bearings, spherical steel bearings, building vibration isolation rubber bearings, etc. Compression resistance elastic modulus test, shear elastic modulus test, shear bonding performance test, shear aging test, friction coeffiffifficient test, and test of axial compression deformation and radial deformation under loading test of highway bridge basin rubber bearing. It can be carried out for dynamic tests such as basin rubber bearings, spherical steel bearings, building vibration isolation rubber bearings horizontal equivalent rigidity, equivalent damping ratio. It can also conduct the compression resistance strength test of other metal or non-metal materials . Rubber bearings Part 1: Test Method for Vibration Isolation Rubber Bearings GB 20688.2-2006 Part 2: Bridge Vibration Isolation Rubber Bearings GB 20688.3-2006 Part 3: Building Vibration Isolation Rubber Bearings GB 20688.4-2007 Part 4: General Rubber Bearings TB ∕ T 1893-2006 Railway Bridge Plate Rubber Bearing TBT 1893-2006 Railway Bridge Plate Rubber Bearing, etc. The parts in contact with the rolling guide block are all quenched bearing steel plates to fully ensure the strength and wear resistance. The host of this product adopts a high rigidity load frame, an upper hydraulic cylinder, a full-stroke guiding structure, a direct drive valve and a measurement control system, which has strong anti-pollution ability and a wide and stable control range
