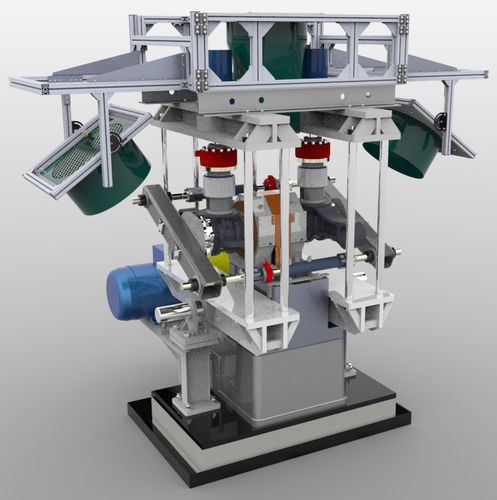

Bearing testing system

temperatureperformancevibration

The wheel hub bearing testing machine is specially used for testing the fatigue life of wheel hub bearings of light and heavy-duty vehicles and trains, and provides test conditions for evaluat ing the performance of wheel hub bearings. Simulating the loading & motion state of the hub bearing under driving state, and the real-time data are collected by the temperature, vibration, speed and other sensors for data analysis to determine the bearing failure. The control system can automatically collect, process, display, print data and test results, with alarm and limit protection functions. 04 Specifications and main parameters Mode Parameter Max radial force (KN) Max axial force (KN) Max speed (R / min) Distance between radial loading axis and hub bearing edge (mm) Distance between axial loading axis. Automobile hub bearing test bed Theautomobile hub bearing test bed can realize radial loading of two groups of hub bearings and simulate the load of vehicle loading on the hub bearing. Two sets of hub bearings are loaded axially at the same time, and the distance between loading axis and hub bearing axis is adjustable, which is used to simulate the axial load on the hub bearing exerted by the ground through the tire in the turning process. At the same time, the outer ring of the hub bearing is driven by a variable frequency motor to realize the omnidirectional simulation of the rotation of the bearing to simulate the load and motion of the hub bearing.
