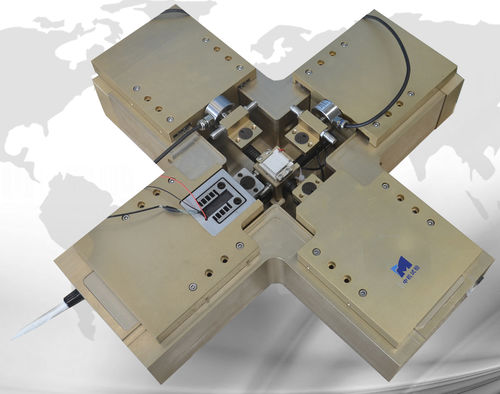

Tensile testing system Mtest

bendingfatiguecompression

*Closed structure design, not only beautiful, but also can effectively protect the screw, bearings and other parts; *The whole machine adopts ball screw and V guide rail, improving the rigidity; *Using the modular design concept, integrated bending, compression,shear and other clamps; *Fast integration with the SEM by the adapter; *Many grips are available to suit different customer needs. Technical parameter * Test Force： 50/100/200/500/1000/2000/3000/5000N * Max. Dynamic Force： 1000N * Amplitude ：20N * Fatigue frequency： 20Hz * Force measurement range：4%-100%FS * Force measurement accuracy：Indicating value 1% * Deformation measurement accuracy:Better 土2µm * Beam speed range： 0.01-3mm/min * Beam displacement rate： 0.01µm * Operating temperature: ≤600℃ Suitable for non-metallic fixture form一Embedded grip The grip of resin and hard rubber can be realized. Apply to bionic material grip form —Polyurethane side action grip The grip of grass, leaf, dragonfly wings, thin film,etc biotic materials can be realized. The grip of grass, leaf, dragonfly wings, thin film,etc biotic materials can be realized. Achievable high temperature of lower than 600℃ in test environment; Temperature fluctuation at room temperature of lower than 2℃ Temperature fluctuation in vacuum lower than 1℃ Technical parameters of the refrigeration module Achievable cooling temperature difference of lower than 5℃ Temperature fluctuation at room temperature of lower than 2℃ Temperature fluctuation in vacuum of lower than 1℃
