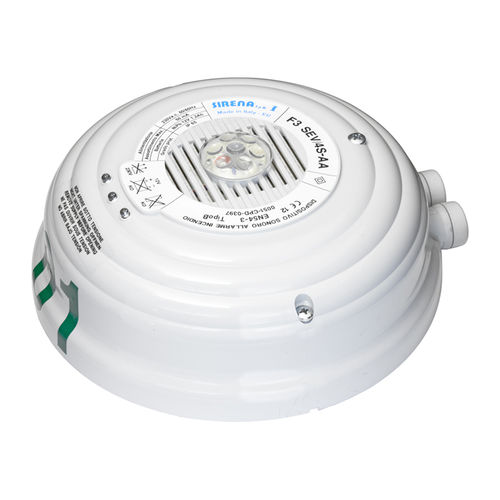

High power evacuation warning siren for residential areas
TRADITIONAL SYSTEM: 1328-CPR-0477
• FRONT COVER with vents (allowing sound emission) and with LED light
• self-diagnosis: an automatic control test is carried out every 24 hours relating to absence of mains power supply, low battery charge, interruption of the magneto-dynamic unit.
Three LEDs positioned under the transparent light source indicate the possible anomalies.
A relay with a C-NC-NO contact (normally open) allows remote localization of fault signal
4 levels of alarm (warning, evacuation, all clear, fire alarm).
The sound relating to the fire alarm is activated by means of polarity inversion by the Fire Alarm Control Box, according to UNI EN 54-3 Norm.
LEVEL 1 | WARNING
LEVEL 2 | EVACUATION
LEVEL 3 | ALL CLEAR
LEVEL 4 | FIRE ALARM
IMPORTANT: it is possible to connect one beacon only (auxiliary flashing beacon), activated by each single alarm sound.
A dip-switch allows four sound options to be selected from a total of eight to be combined to the priorities established.
