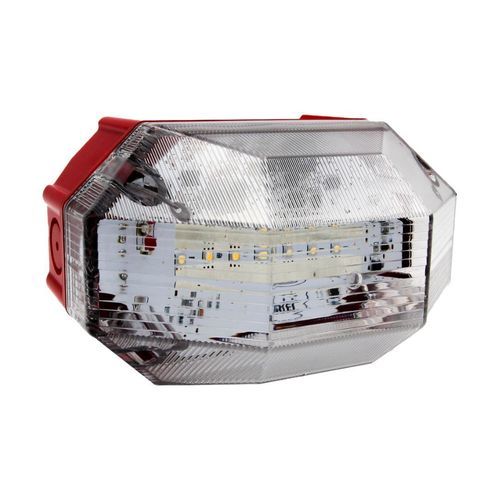

Flash beacon EL-7L FA

multifunctionpermanentLED

Description
EL-7L FA is a visual signalling light designed for industrial applications where high light coverage performance is required. Approval no. 2852-CPR-0219. The integrated NFC module and the MySirena app simplify connection and configuration. The EL-7L FA can also be used together with the SE 120 FA electronic siren.

General characteristics

• Operating temperature: -40°C to +60°C
• Protection rating: IP66 – IP69K
• Impact resistance: IK08
• Continuous service

Electrical characteristics

• Operating voltage: 24V DC

Mechanical characteristics

• Base and dome in high-impact self-extinguishing polycarbonate (IK08)
• Base colour: Grey, Red
• Mounting with standard screws (not supplied)

Luminous characteristics

• 7 high-brightness LEDs producing several light effects
• Mode: single flash compliant with EN54-23 (FPM: 1F 85)
• Light source colour: White, Red
• Using the MySirena app, up to 7 devices can be linked and flash mode selected

Connectivity

• Integrated NFC module for configuration with the MySirena app

Certifications

• Approval no.: 2852-CPR-0219
• CE marking
• Compliance with EN54-23 (visual signalling in accordance with sector standards)

Technical specifications

• Maximum operating temperature (°C): +60
• Minimum operating temperature (°C): -40
• IP rating: IP66 – IP69K
• IK rating: IK08
• Voltage: 24V DC
• Base colour: Grey, Red
• Light source colour: White, Red
• LEDs: 7 high-brightness LEDs
• Light effects: various; single flash EN54-23 (FPM: 1F 85)
• Material: self-extinguishing polycarbonate
• Service: continuous
