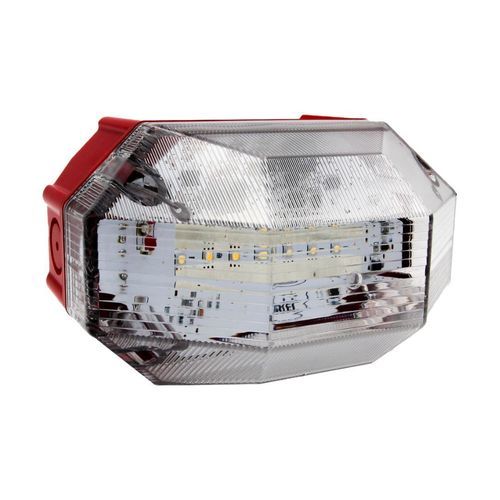

Steady beacon EL-7L series

multifunctionstrobeflash

EL-7L is a beacon designed for industrial applications where high performance parameters in terms of light coverage are required. Available in different voltages and with multiple functions, regarding both light effects and flashing modes. Thanks to the built-in NFC module and the dedicated MySirena app, connection and settings are very easy. It is also possible to use the beacon EL-7L in conjunction with the SE 120 electronic siren. VOLTAGES - EL-7L LT: 24V DC - EL-7L MULTI: 12-24V AC / 12-60V DC (AC: 50/60 Hz). GENERAL FEATURES - Operating temperature: -40° +60°C - IP rating: IP66-IP69K - Impact Protection: IK08 - Continuous operation MECHANICAL FEATURES - Self-extinguishing polycarbonate dome and base with high impact resistance (IK08), suitable for outdoor use due to IP66-IP69K rating. - Screw mounting (screws not included). OPTICAL FEATURES - 7 very bright LEDs producing different light effects: steady light, single flash (FPM: 1F 95), double flash (CPM: 2F 80), triple flash (CPM: 3F 67), strobe (FPM: 1F 300), with the possibility to customize the number of flash/min via MySirena App. - Up to a maximum of 7 EL-7L devices can be connected together and their flashing mode can be selected (synchronous, alternating, sequential). - Maximum Temperature: +60°C - Minimum Temperature: -40°C - IP Grade: IP66 – IP69K - IK Rating: IK08 - Voltage: 12-24V AC / 12-60V DC, 24V DC - Base color: Gray, Red - Light source color: Amber, Red, Blue, GREEN, White
