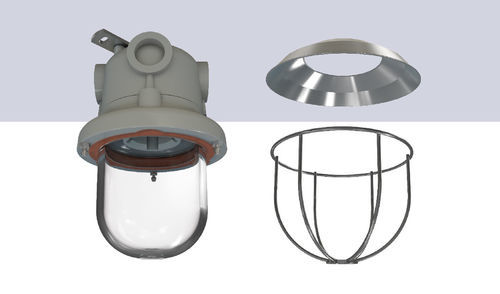

Light fixture LF-EVC series

LEDhalogenincandescent

Product Details
The LF-EV series of lighting fixtures are used in potentially dangerous or industrial areas for lighting internal or external structures. They are compatible with halogen, energy-saving, LED, or incandescent lightbulbs, where permitted by relevant national standards. The stainless steel version, AISI 316L, is also used in off-shore plants. The standard version is composed of a body made of aluminum with a low level of copper, and a resistant borosilicate glass part with high mechanical and temperature resistance.

• Three types of fixture available:
• LF-EVA: hanging installation with one 3/4” NPT opening (ANSI/ASME B1.20.1)
• LF-EVC: ceiling installation with two or three 3/4” NPT openings
• LF-EVJ: wall installation with two 3/4” NPT openings
• More openings and/or other thread sizes can be supplied on request.
• The four different sized models (EV50, EV100, EV200, EV300) provide a complete range to cover a variety of requirements.

Accessories on request
> Different housing colors available
> External reflector anodized aluminum
> ST. ST. 316L electro-polished cage
> Cable gland
> Led lamp, halogen lamp, fluorescent lamp

Caractéristiques / spécifications techniques

• Body: Aluminum alloy with low copper content
• Glass: Borosilicate, high mechanical and temperature resistance
• Available versions: Standard (aluminum), Stainless steel AISI 316L (for off-shore)
• Installation types: Hanging (LF-EVA), Ceiling (LF-EVC), Wall (LF-EVJ)
• Thread openings: 3/4” NPT (ANSI/ASME B1.20.1), customizable on request
• Compatible lamps: Halogen, energy-saving, LED, incandescent, fluorescent (on request)
• Model sizes: EV50, EV100, EV200, EV300
