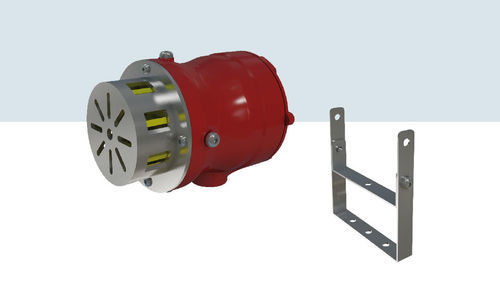

Weather-resistant siren RS-ETS30

explosion-proofstandardcorrosion-resistant

Product Details
The RS-ETS30 series rotary sirens are used in potentially explosive environments, such as chemical plants, oil refineries, pump stations and in places where dust may be present such as storage silos. The standard version is composed of a body made of an aluminum alloy with low copper content and an impeller cover cap in stainless steel AISI 316L. The EN-GJL-200 cast iron and AISI 316L stainless steel models are certified for Group I and therefore suitable for use in mines and tunnels. These models are also suitable for marine environments, offshore platforms and chemical areas with highly aggressive environments. Its compact dimensions make it suitable for equipping the control-command switchboards. The possibility of mounting with AISI 316L stainless steel brackets in four different positions, each rotated 90° with respect to the longitudinal axis, make it suitable for various installation requirements.

Accessories on request

• Different housing colors available
• ST. ST. 316L mounting bracket
• Cable gland

Caractéristiques / spécifications techniques

• Body: Aluminum alloy with low copper content
• Impeller cover cap: Stainless steel AISI 316L
• Available models: EN-GJL-200 cast iron and AISI 316L stainless steel
• Certified for Group I (suitable for mines and tunnels)
• Suitable for marine environments, offshore platforms, and chemical areas
• Compact dimensions for control-command switchboards
• Mounting: AISI 316L stainless steel brackets, four positions (rotated 90°)
