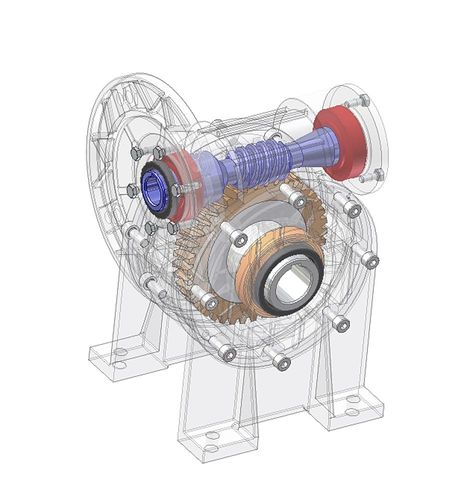

Worm gear reducer I series
right angle2 - 5 kNmhigh-performance

worm gear reducer
worm gear reducer
worm gear reducer
worm gear reducer
Add to favorites
Compare this product


Characteristics

Type
worm
Shaft orientation
right angle
Torque
2 - 5 kNm
Performance
high-performance
Applications
for heavy-duty applications
Rotational speed

1,080 rpm, 1,680 rpm, 3,360 rpm (6,785.84 rad.min-1)

Power

55 kW (74.78 hp)

Description

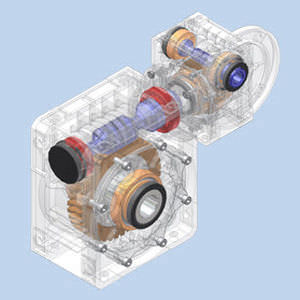

High Modularity Worm gearboxes suitable for the modular assembling of flanges, feet and torque arm. High Versatility 12 sizes with wide range of different mounting positions. High Performances Max input power 55 kW. Max torque 3000 Nm. Ratios up to 100/1. High Reliability Up to size 80, housing built in pressure die casting aluminium, designed in order to guarantee lightness, strength and stiffness. For sizes larger than 80 we supply a sturdy cast iron housing that is also suitable for heavy-duty applications. ZI teeth profile on worms and wormwheels for a silent working without vibrations. Optional Accessories Torque limiter Double extension input shaft Single/double solid output shaft Torque arm
