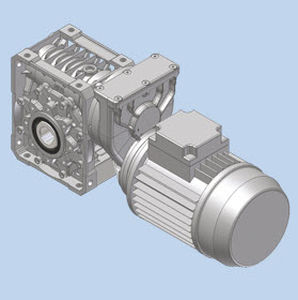

Worm gear reducer CMU-U series
right angle500 - 1000 Nmhigh-performance

worm gear reducer
worm gear reducer
worm gear reducer
Add to favorites
Compare this product


Characteristics

Type
worm
Shaft orientation
right angle
Torque
500 - 1000 Nm
Performance
high-performance
Applications
for heavy-duty applications
Rotational speed

3,360 rpm
(21,111.5 rad.min-1)

Power

2.1 kW
(2.86 hp)

Description

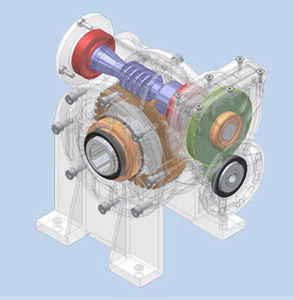

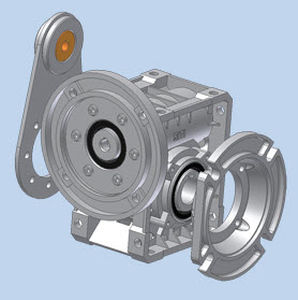

High Modularity Worm gearboxes suitable for the modular assembling of flanges and torque arm. High Versatility Wide range of combinations and mounting positions. High Performances Max input power 2.1 kW. Max torque up to 885 Nm. Ratios up to 5000/1. High Reliability Housing built in pressure die casting aluminium, designed in order to guarantee lightness, strength and stiffness. ZI teeth profile on worm and wormwheels for a silent working without vibrations. Optional Accessories Double extension input shaft Single/double solid output shaft Torque arm
