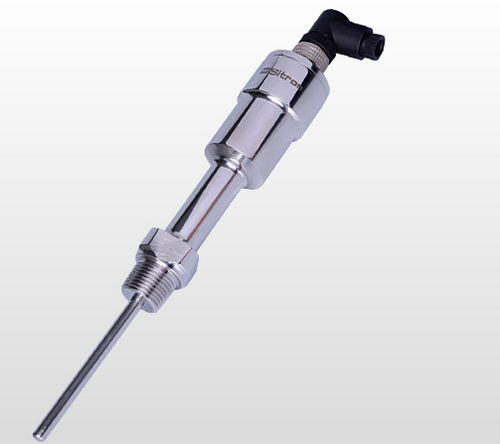

Pt100 temperature sensor PT10
RTDflangeIP67

Pt100 temperature sensor
Pt100 temperature sensor
Pt100 temperature sensor
Add to favorites
Compare this product


Characteristics

Technology
Pt100, RTD
Mounting
flange
Protection level
IP67
Applications
process
Other characteristics
stainless steel, compact, 3-wire, flexible, precision, rugged, 4-digit
Temperature

Min.: -100 °C
(-148 °F)

Max.: 200 °C
(392 °F)

Description

The robust and compact Pt10 Temperature Sensor in 316 Stainless Steel has a Pt100 RTD platinum sensor inserted into the rod with optimum accuracy and stability. The platinum RTD has the function of converting the measured temperature in the process to resistance in a proportional way with precision. As it does not have an electronic module, this model works by connecting the output (3 wires) to controllers responsible for converting the resistance signal to the temperature in 4 … 20mA or according to the needs. Application: Measurement and temperature control in industrial process Sensor: Pt100 RTD (Platinum) Output Signal: Pt100 (3 fios) Enclosure / Body Material: 316 S.S Electrical Connection: M12 Connector Process Connection: BSP /NPT, Flange or Sanitary Operating Temperature ( Ambient): -10...+70°C
