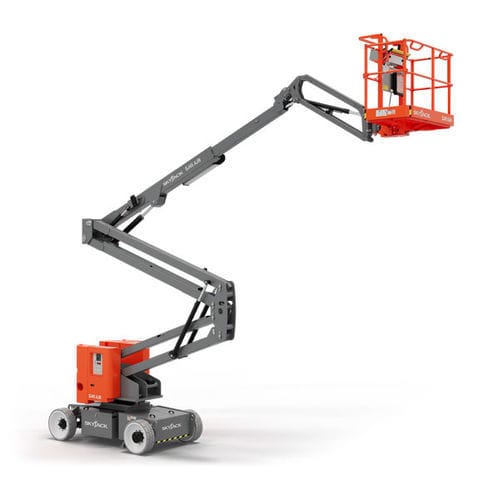

Mobile articulated telesocpic boom lift SJ45 AJN/ARJN

wheeledself-propelledelectric

Overview
Skyjack’s new SJ45 AJN and SJ45 ARJN battery powered electric articulated slab booms have been developed to provide a clean, quiet, sustainable rental solution with no emissions, lower operating costs and increased utilization.

SKYCODED™
A proven and reliable control system, incorporating Skyjack’s color coded and numbered wiring system, makes these machines easier to troubleshoot and repair which means easier maintenance and lowered costs.

ACCESSORYZERS™
Skyjack offers a full line of ACCESSORYZERS™ to improve machine versatility. These manufacturer-approved accessories are designed to add functionality to the machine and convenience for the operator — helping to get materials to the work site, protecting equipment from the weather, or enhancing productivity.

Benefits

• Superior working height of up to 51’ (15.54 m)
• Class leading up-and-over capability – 25’ 7” (7.8 m)
• Machine width that is 12 inches narrower than standard machines in the 45’ (13.7 m) height class
• Narrow 4’ 11” (1.5 m) machine width allows access through standard double doors and in confined spaces
• Low stowed height 6’ 6” (1.98 m)
• Features EASYDRIVE™ and SKYRISER™
• The SJ45 ARJN includes a rotating jib providing 180° horizontal movement for precise platform positioning and increased productivity

Specifications (SJ45 AJN — SJ45 ARJN)
Work Height — SJ45 AJN: 50’ 11” (15.52 m) — SJ45 ARJN: 51’ (15.54 m)
Platform Height — SJ45 AJN: 44’ 11" (13.69 m) — SJ45 ARJN: 45’ (13.72 m)
Up and Over Height — SJ45 AJN: 25’ 7” (7.8 m) — SJ45 ARJN: 25’ 7” (7.8 m)
Platform Size — SJ45 AJN: 30" x 58" (0.76 x 1.47 m) — SJ45 ARJN: 30" x 58" (0.76 x 1.47 m)
Stowed Width — SJ45 AJN: 4’ 11” (1.5 m) — SJ45 ARJN: 4’ 11” (1.5 m)
Tailswing — SJ45 AJN: 6” (0.15 m) — SJ45 ARJN: 6” (0.15 m)
Stowed Height — SJ45 AJN: 6’ 6” (1.98 m) — SJ45 ARJN: 6’ 6” (1.98 m)
Transportation Height — SJ45 AJN: 7’ (2.13 m) — SJ45 ARJN: 7’ (2.13 m)
Stowed Length — SJ45 AJN: 20’ 11” (6.37 m) — SJ45 ARJN: 22’ 9” (6.93 m)
Transportation Length — SJ45 AJN: 20’ (6.11 m) — SJ45 ARJN: 21’ 7” (6.57 m)
Ground Clearance — SJ45 AJN: 3” (7.6 cm) — SJ45 ARJN: 3” (7.6 cm)
Wheelbase — SJ45 AJN: 6’ 7” (2 m) — SJ45 ARJN: 6’ 7” (2 m)
Rotation — SJ45 AJN: 355° NC — SJ45 ARJN: 355° NC
Platform Rotation — SJ45 AJN: 175° — SJ45 ARJN: 175°
Jib Length — SJ45 AJN: 4’ 8” (1.42 m) — SJ45 ARJN: 4’ 8” (1.42 m)
Jib Range +/- — SJ45 AJN: 145° (+75° / -70°) — SJ45 ARJN: 145° (+75° / -70°)
Weight — SJ45 AJN: 15,063 lbs (6,832 kg) — SJ45 ARJN: 15,600 lbs (7,076 kg)
Gradeability — SJ45 AJN: 30% — SJ45 ARJN: 30%
Turning Radius (Inside) — SJ45 AJN: 3’ 8” (1.12 m) — SJ45 ARJN: 3’ 8” (1.12 m)
Turning Radius (Outside) — SJ45 AJN: 11’ 4” (3.45 m) — SJ45 ARJN: 11’ 4” (3.45 m)
Drive Speed (Stowed) — SJ45 AJN: 3 mph (4.8 km/h) — SJ45 ARJN: 3 mph (4.8 km/h)
Drive Speed (Raised) — SJ45 AJN: 0.4 mph (0.6 km/h) — SJ45 ARJN: 0.4 mph (0.6 km/h)
Capacity — SJ45 AJN: 500 lbs (227 kg) — SJ45 ARJN: 500 lbs (227 kg)
Horizontal Reach — SJ45 AJN: 22’ (6.72 m) — SJ45 ARJN: 22’ 5” (6.82 m)
Local Floor Load (With Rated Load) — SJ45 AJN: 225 psi (15.82 kg/cm2) — SJ45 ARJN: 230 psi (16.17 kg/cm2)
Ground Bearing Pressure (With Rated Load) — SJ45 AJN: 176 psi (12.37 kg/cm2) — SJ45 ARJN: 180 psi (12.66 kg/cm2)
Overall Floor Load (With Rated Load) — SJ45 AJN: 483 psf (2357 kg/m2) — SJ45 ARJN: 499 psf (2435 kg/m2)
Maximum # of Persons — SJ45 AJN: 2 / 1 — SJ45 ARJN: 2 / 1
Wind Rating — SJ45 AJN: 28 mph (12.5 m/s) — SJ45 ARJN: 28 mph (12.5 m/s)
Tire Type — SJ45 AJN: Solid, NM — SJ45 ARJN: Solid, NM
Tire Size — SJ45 AJN: 600 x 190 — SJ45 ARJN: 600 x 190

Accessories and Options (selected)
Battery options — Available for SJ45 AJN and SJ45 ARJN
Bio oil — Available for SJ45 AJN and SJ45 ARJN
Control box cover — Available for SJ45 AJN and SJ45 ARJN
Flashing light — Available for SJ45 AJN and SJ45 ARJN
Non destructive testing — Available for SJ45 AJN and SJ45 ARJN
Side spring hinged entry gate — Available for SJ45 AJN and SJ45 ARJN
Tool caddy — Available for SJ45 AJN and SJ45 ARJN
White noise alarm — Available for SJ45 AJN and SJ45 ARJN
Elevate (platform telematics/management) — Available for SJ45 AJN and SJ45 ARJN

caractéristiques / spécifications techniques

• Product type: Electric battery-powered articulated slab booms
• Models: SJ45 AJN (non-rotating jib) and SJ45 ARJN (rotating jib)
• Work height: up to 51’ (15.54 m)
• Platform dimensions: 30" x 58" (0.76 x 1.47 m)
• Stowed width: 4’ 11” (1.5 m) — allows passage through double doors
• Stowed height: 6’ 6” (1.98 m); Transportation height: 7’ (2.13 m)
• Stowed/transportation lengths: SJ45 AJN stowed 20’ 11” (6.37 m) / transport 20’ (6.11 m); SJ45 ARJN stowed 22’ 9” (6.93 m) / transport 21’ 7” (6.57 m)
• Horizontal reach: SJ45 AJN 22’ (6.72 m); SJ45 ARJN 22’ 5” (6.82 m)
• Maximum platform capacity: 500 lbs (227 kg)
• Maximum persons: 2 / 1
• Drive speeds: Stowed 3 mph (4.8 km/h); Raised 0.4 mph (0.6 km/h)
• Gradeability: 30%
• Tires: Solid, NM, size 600 x 190
• Rotation: 355° non-continuous (NC); platform rotation 175°
• Jib: 4’ 8” (1.42 m) with ±145° range (+75° / -70°)
• Weight: SJ45 AJN 15,063 lbs (6,832 kg); SJ45 ARJN 15,600 lbs (7,076 kg)
• Local floor load / Ground bearing pressure / Overall floor load provided for both models in specifications
• Wind rating: 28 mph (12.5 m/s)
• Key features: EASYDRIVE™, SKYRISER™, SKYCODED™ wiring system, ACCESSORYZERS™ compatibility
