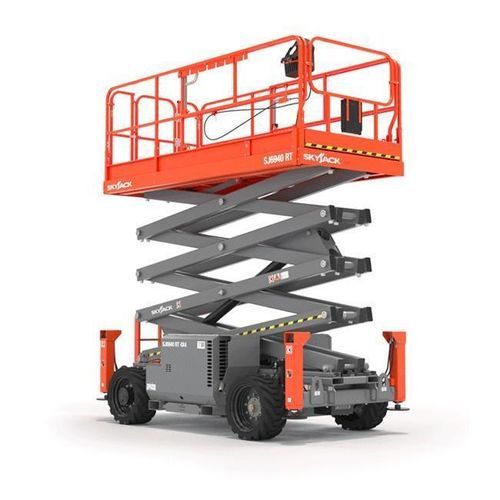

Mobile scissor lift SJ6940 RT

wheeledself-propelleddiesel

Overview
Skyjack's SJ6940 RT rough-terrain scissor lift delivers class-leading working height and the longest working area in its category. With four-wheel drive and an oscillating front steer axle, it is designed for demanding outdoor and mixed indoor/outdoor construction and maintenance tasks.

SKYCODED™
A proven Skyjack control system with color-coded and numbered wiring for simplified troubleshooting and maintenance, reducing downtime and service costs.

ACCESSORYZERS™
Manufacturer‑approved accessories (ACCESSORYZERS™) expand machine versatility, protect equipment and enhance operator productivity by adding practical functions and on-site convenience.

Benefits

• Intelligent drive system automatically selects torque modes by grade and engine RPM for optimal jobsite performance.
• Longest working area in its class with 175" (4.45 m) total length including extension deck for extended outreach.
• Front oscillating axle improves traction and stability on rough terrain.
• Self-centering scissor stack for stable, repeatable positioning.
• Single lift cylinder design reduces complexity and maintenance points.
• Optional turf tires available for sensitive surfaces.

Accessories and options

• 3.5 kW generator
• BIO OIL
• Board carrier
• Cold weather package
• Extended warranties
• Flashing light
• Non destructive testing
• Positive air shut-off valve
• RT heavy duty pipe rack
• SGLE
• Tire options (including optional turf tires)
• Tool caddy
• White noise alarm
• ELEVATE (telematics/connected services)

caractéristiques / spécifications techniques

• Work Height: 46' (14.02 m)
• Raised Platform Height: 40' (12.19 m)
• Lowered Platform Height: 60" (1.52 m)
• Overall Width: 70.5" (1.8 m)
• Overall Length: 143" (3.63 m)
• Stowed Height (Rails Up): 108" (2.74 m)
• Stowed Height (Rails Down): 75" (1.91 m)
• Platform Width (Inside Dimension): 56.5" (1.44 m)
• Platform Length (Inside Dimension): 133" (3.38 m)
• Extension Deck (Roll Out): 3.5' (1.07 m)
• Ground Clearance: 8" (20 cm)
• Wheelbase: 85" (2.16 m)
• Weight: 11,065 lbs (5,019 kg)
• Gradeability: 35%
• Turning Radius (Inside): 80" (2.03 m)
• Turning Radius (Outside): 185" (4.7 m)
• Lift Time (With Rated Load): 60 sec
• Lower Time (With Rated Load): 37 sec
• Drive Speed (Stowed): 3.5 mph (5.6 km/h)
• Drive Speed (Raised): 0.3 mph (0.5 km/h)
• Maximum Drive Height: Full Height
• Capacity (Overall): 800 lbs (363 kg)
• Distributed Capacity (Main Platform): 500 lbs (227 kg)
• Distributed Capacity (Extension Deck): 300 lbs (136 kg)
• Local Floor Load (With Rated Load): 103 psi (710 kPa)
• Overall Floor Load (With Rated Load): 288 psf (13.8 kPa)
• Maximum # of Persons: 3 @ 0 mph (0 m/s)
• Wind Rating: 2 @ 28 mph (12.5 m/s)
• Tire Type: Foam Filled (optional turf tires available)
• Tire Size: 26 x 12
• Diesel Engine: 24.8 HP Kubota
• Fuel Tank: 23 gal (87 L)
• Hydraulic Reservoir: 18 gal (68 L)
