Evaluation kit

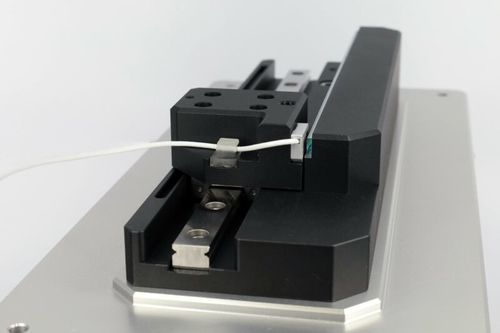

Stand alone kit to demonstrate the functionality and adjustment of the METIRIO® optical encoder The ENCODER EVALUATION KIT consists of 3 main components: • Encoder Evaluation Slide (EES) • Encoder Evaluation Module (EEM) • Encoder Evaluation Program (EEP) The ENCODER EVALUATION KIT is used to demonstrate the alignment tolerances and commissioning of the encoder for unexperienced users. The ENCODER EVALUATION MODULE combined with the ENCODER EVALUATION PROGRAM allows to adjust the electronic encoder signals after the assembly into the application and can be used for diagnostics in case of failure.
