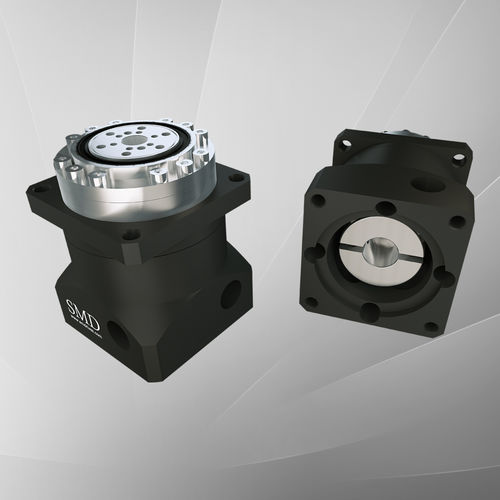

PLANETARY GEARBOX WITH FLANGE END
Product Description
Designed for Precision Platform Rotation
Nominal Output Torque : 25Nm to 350Nm.
Backlash: Less than 1 Arc-min.
Available reduction ratios from 1:3 to 1:100
Easily coupled to servo gearmotor.
High load carrying capacity.
Highly rigid.
Features
Special output structure for rotating disk (flange) rigidity.
Attach Load directly onto disk for rotating, save space and simplify mechanism.
Has crossed roller bearing for rigid rotation, precise positioning and high axial and radial force capability.
Lubricated for life.
Please contact SMD for 3 stage ratios.
For 1000 Times max during life of gearhead.
For input speeds above 3000 rpm, please consult us and provide application details.
At permissible input speed and Nominal Output Torque.
Permissible axial load or permissible radial load is the value that satisfies the reducer life when either a pureradial load or an axial load is applied to the flange face. (When radial load is Lr+R=0mm, and axial load is La=0mm)
Six Times of Safety factor.
