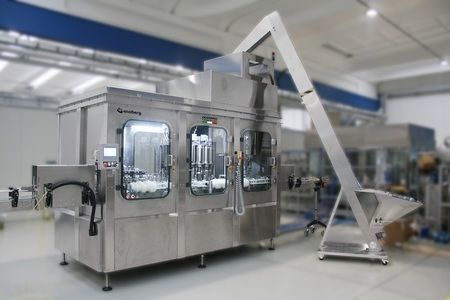

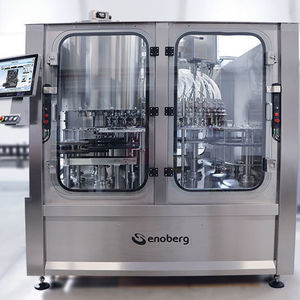

The HEVFe series (HYPER CLEAN) are electronic volumetric filling machines for PET bottles, engineered for hygienic operation, low maintenance and flexible handling of flat products across a wide production range. Machines support electronic volumetric filling (magnetic flow-meters) for conductive liquids and Coriolis mass flow-meters for non-conductive products.

Key features

• High-precision flow- or mass-meters installed per filling valve
• Simplified filling valve with reduced gasket count; two-stage filling control (slow + fast)
• No valve-to-bottle contact during filling to minimize contamination risk
• Interchangeable valve terminals to handle different product types
• Design focused on easy maintenance and reduced downtime

Basic version - main equipment and features

• 18" HMI touch screen with pre-programmed recipes
• Format parameters editable via HMI
• Tool-less quick changeover for bottle guide parts
• Manual dummy bottles for complete cleaning/sanitization of product-contact parts (automatic dummy bottles optional)
• Product pump to maintain constant filling pressure
• Compact frame for optimized footprint and transport

Available configurations
Filler-only, rinser/filler/capper, filler/capper or ECOBLOC® combination with ENOBERG filler-capper block and stretch-blow moulder; multiple machine sizes to cover different production outputs.

Production range (selected entries)
PRODUCT - SPEED (bph) - REFERENCE
Flat water - 1,000 – 55,000 - 0.5 L
Vinegar - 1,000 – 46,000 - 1 L
Juice - 1,000 – 50,000 - 0.5 L
Detergents - 1,000 – 48,000 - 0.75 L

Other data
Bottle capacity: 0.2 ÷ 12 L (HC)
Production speed: 1,000 ÷ 55,000 bph
Filling valves: 9 ÷ 96
Compatible caps: Plastic screw cap, press-on cap
Workable bottle diameter: 44 ÷ 125 mm (215 mm HC version)
Workable bottle height: 160 ÷ 340 mm
Bottle handling: Neck handling
Operator panel: 18" touch screen HMI

Operation (process steps)

• 1 - INFEED CONVEYOR: PET bottles fed into the machine via air conveyor; flow controlled by pneumatic gate.
• 2 - BOTTLE TRANSFER: INLET → RINSER: Rotating star wheel transfers bottles by neck to rinsing carousel.
• 3 - RINSER: Bottle inverted by mechanical cam; nozzle applies water or air; each rinsing turret fitted with "no bottle-no spray" sensor.
• 4 - BOTTLE TRANSFER: RINSER → FILLER: Star wheel moves bottles to filling carousel.
• 5 - FILLER: Gripper holds bottle neck under valve; filling is electronic volumetric (magnetic flow-meters) for conductive products or Coriolis mass meters for non-conductive products; pulse/gauge control stops valve at set quantity; "no bottle-no fill" present on each turret.
• 6 - BOTTLE TRANSFER: FILLER → CAPPER: Star wheel transfers bottles to capping turret.
• 7 - CAPPER: Caps fed by pick-and-place star wheel and applied by rotating or pressure capping heads; each turret has "no bottle-no cap" protection.
• 8 - OUTLET CONVEYOR: Filled and capped bottles exit via air conveyor with automatic height adjustment.

Technical data

• Model / Series: HEVFe (HYPER CLEAN)
• Bottle capacity range: 0.2 ÷ 12 L (HC)
• Production speed: 1,000 ÷ 55,000 bph
• Filling valves: 9 ÷ 96
• Valve technology: Electronic volumetric with magnetic flow-meters (conductive) or Coriolis-based mass meters (non-conductive)
• Material in contact with product: AISI 316
• Operator interface: 18" HMI

Advantages

• Modular, customizable structure
• Compact filling module for easy access and maintenance
• Reduced operating and maintenance costs
• Minimized contamination risk and high hygiene level
• Accurate filling with high repeatability

Standard accessories

• Tempered glass guarding
• Product-contact parts in AISI 316
• 18" HMI touch screen
• Pre-programmed recipes for fast software changeover
• Quick bottle changeover parts
• Flow-meter installed near each filling valve
• Easily serviceable filling valve in AISI 316
• Electronic filling control
• Automatic cleaning phases (CIP)

Optional (on request)

• Upper covering
• Laminar flow to create overpressure and reduce micro-contamination
• Sterile air blowing from filling valve body during filling
• Automatic positioning dummy bottles

Technical specifications

• Model / Series: HEVFe series (HYPER CLEAN)
• Filling technology: Electronic volumetric (EVF) for conductive products or electronic mass (EMF) with Coriolis flow-meters for non-conductive products
• Bottle capacity: 0.2 ÷ 12 L (HC)
• Production speed range: 1,000 ÷ 55,000 bph
• Filling valves: 9–96 (configurable)
• Workable bottle diameter: 44 ÷ 125 mm (215 mm HC)
• Workable bottle height: 160 ÷ 340 mm
• Materials: AISI 316 product-contact parts
