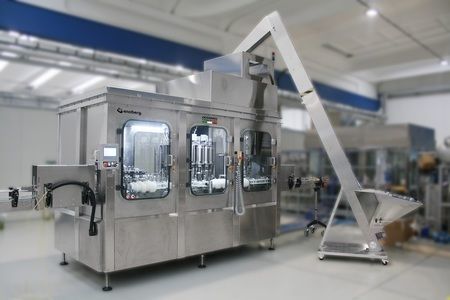

Automatic filling machine HEVS

bottlefor plastic bottlesfor PET bottles

Product overview
The HEVFe series electronic volumetric fillers, built to HYPER CLEAN standards, perform precise volumetric filling of flat products into PET bottles. The system uses a dedicated flow meter for each filling valve and supports a wide range of bottle sizes and production speeds.

Key features

• High-precision flow-meter installed for each filling valve;
• Simplified filling valve with reduced gaskets and two-stage filling (slow/fast);
• No contact between filling valve and bottle during filling;
• Interchangeable valve terminals for handling different product types;
• Designed for easy maintenance and reduced downtime.

Basic version features

• 18" HMI touch screen with pre-programmed recipes;
• Format parameters configurable directly via HMI;
• Tool-less quick changeover for bottle guide parts;
• Manual dummy bottles for cleaning and sanitization (automatic dummy bottles on request);
• Product pump to maintain constant pressure during filling;
• Compact frame to optimize footprint and transport.

Available versions
Machines are available in multiple sizes and in configurations such as rinser/filler/capper, filler/capper or ECOBLOC® integrated solutions combining filler-capper blocks with stretch-blow moulders.

Production range
PRODUCT | SPEED (bph) | REFERENCE
Flat water | 1.000–55.000 | 0.5 L
Vinegar | 1.000–46.000 | 1 L
Juice | 1.000–50.000 | 0.5 L
Detergents | 1.000–48.000 | 0.75 L

Other data
Parameter | Value
Bottle capacity | 0.2 ÷ 12 L (HC)
Production speed | 1.000 ÷ 55.000 bph
Filling valves | 9 ÷ 96
Workable caps | Plastic screw cap, press-on cap
Workable bottle diameter | 44 ÷ 125 mm (215 mm HC)
Workable bottle height | 160 ÷ 340 mm
Bottle handling | Neck handling
Operator panel | 18" touch screen HMI

Operation and filling technology
The system uses electronic volumetric filling with magnetic flow-meters (EVF) for conductive products or Coriolis mass flow-meters (EMF) for non-conductive products. Each filling valve has an independent flow gauge that counts pulses and stops the valve when the preset volume is reached. Each turret includes a "no bottle - no fill" safety. Product is supplied from an external tank via pump.

Advantages

• Modular and customizable structure;
• Compact filling module that reduces transfer stars and eases maintenance access;
• Low operating and maintenance costs;
• Low contamination risk and high hygiene level;
• Accurate price-to-performance balance.

Standard accessories

• Tempered glass guarding;
• Product-contact parts in AISI 316;
• 18" HMI touch screen;
• Pre-programmed recipes for fast software changeover;
• Quick bottle changeover parts;
• Flow-meter near each filling valve;
• Easily serviceable AISI 316 filling valves;
• Electronic filling control;
• Automatic CIP cleaning phases.

Optional

• Upper covering;
• Laminar flow hood for overpressure in working area;
• Sterile air blowing from the valve body during filling;
• Automatic positioning dummy bottles.

Technical specifications

• Model / series: HEVFe
• Bottle capacity: 0.2 – 12 L (HC version)
• Production speed: 1.000 – 55.000 bph (depending on product)
• Filling valves: 9 – 96
• Filling technology: electronic volumetric (EVF) or electronic mass (EMF, Coriolis)
• Materials in contact with product: AISI 316
• Bottle handling: neck handling (no valve-bottle contact)
• Operator panel: 18" HMI
• Cleaning: CIP automatic cycles
