dosing dispenser for the electronics industry / brazing paste / programmable
QK982B

{{requestButtons}}

Characteristics

  • Domain:

    for the electronics industry

  • Applications:

    brazing paste

  • Other characteristics:

    programmable

Description

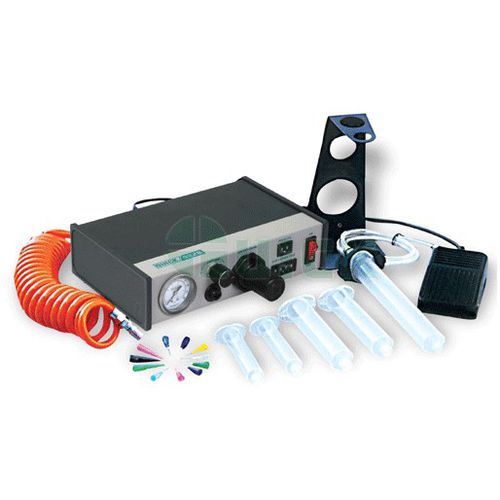

This dispenser can be used to evenly apply solder paste on to fine IC pads on circuit boards, a necessary tool for prototyping or repairing.

Injection dosage and time can be controlled by adjusting the air pressure, choosing an appropriate duration and needle. Mini foot pedal for convenient operation. Various nozzles to suit different needs.

Specifications:
● Timing: 0.01-1S; 1-10S; 2-20S; 3-30S programmable.
● Accuracy: 0.5%.
● Min injection dosage: 0.01mL.
● Input air pressure: 2.5-7bar(35-100psi).
● Output air pressure: 0.7-7bar(1-100psi).
● Dimension: 238x150x60mm.
● 110V power supply. 220V model also available.
