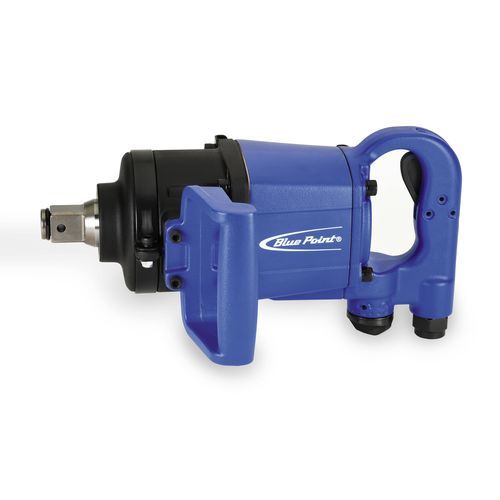

Pneumatic impact wrench AT1300B

1"

Features

• 2,000 ft-lb (2,712 N·m) of torque
• Durable, high-torque pin-less clutch mechanism
• Ergonomic housing with a steel protector ring
• High-performance motor to maximize output torque
• Side-mounted handle for improved operator control
• Optional internal/external trigger set
• Three forward and three reverse speeds
• One year warranty

Specifications
Free Speed, RPM : 5,000
Vinyl Boot (Included) : -
Length, inches (mm) : 13.59 (345)
Air Consumption, Free Speed, CFM (SCFM) [l/min] : 10.8 (—) [305.82]
Extended Anvil Length, inches (mm) : 6 (152)
Air Inlet Thread Size, inches (NPT) : 1/2 (14)
Country of Origin : TWN
Sound Level dB(A) Pressure : 108.9
Blows Per Minute, BPM : —
Vibration Level, m/s² : 12.01
Recommended Hose Size, inches (mm) : 1/2 (13)
Anvil Type : Friction Ring w/Thru Hole
Drive Size, inches (mm) : 1 (25)
Weight, lb (kg) : 23.2 (10.5)

Warranty
Snap-on Repair Center, 1 YEAR from Date of Purchase. Repair or calibrate at Snap-on Repair Center.

Technical specifications

• Item / SKU: AT1300B
• Torque: 2,000 ft-lb (2,712 N·m)
• Free Speed: 5,000 RPM
• Length: 13.59 in (345 mm)
• Extended Anvil Length: 6 in (152 mm)
• Drive Size: 1 in (25 mm)
• Air Consumption (Free Speed): 10.8 CFM [305.82 l/min]
• Air Inlet Thread Size: 1/2 in (14 NPT)
• Recommended Hose Size: 1/2 in (13 mm)
• Anvil Type: Friction Ring with Thru Hole
• Vibration Level: 12.01 m/s²
• Sound Level (dB(A) Pressure): 108.9
• Weight: 23.2 lb (10.5 kg)
• Country of Origin: TWN
• Clutch: Pin-less clutch mechanism
• Speeds: Three forward and three reverse
