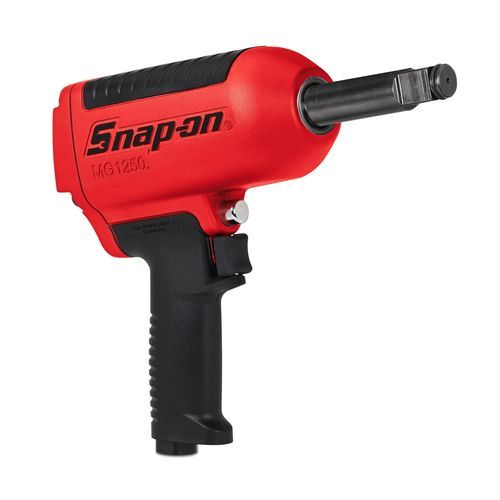

Pneumatic impact wrench MG1250L
3/4"for the automotive industrylightweight

Pneumatic impact wrench - MG1250L - Snap-on - 3/4" / for the automotive industry / lightweight
Pneumatic impact wrench - MG1250L - Snap-on - 3/4" / for the automotive industry / lightweight
Pneumatic impact wrench - MG1250L - Snap-on - 3/4" / for the automotive industry / lightweight - image - 2
Pneumatic impact wrench - MG1250L - Snap-on - 3/4" / for the automotive industry / lightweight - image - 3
Pneumatic impact wrench - MG1250L - Snap-on - 3/4" / for the automotive industry / lightweight - image - 4
Add to favorites
Compare this product

Characteristics

Type
pneumatic
Drive size
3/4"
Other characteristics
for the automotive industry, lightweight, for heavy-duty applications
Torque

Max.: 1,830 Nm
(1,349.7387 ft.lb)

Min.: 1,695 Nm
(1,250.1678 ft.lb)

Length

Max.: 267 mm
(10.5 in)

Min.: 267 mm
(10.5 in)

Sound level

Max.: 100 dB

Min.: 100 dB

Weight

Max.: 3.99 kg
(8.796 lb)

Min.: 3.7 kg
(8.157 lb)

Description

Features
  • 1,350 ft·lb (1,830 N·m) bolt breakaway torque and 1,250 ft·lb (1,695 N·m) working torque for heavy fasteners
  • Designed for servicing large equipment and tires on mid‑sized fleet vehicles
  • Six‑vane rotor for faster motor start and consistent performance
  • Twin‑hammer impact mechanism with sealed‑in oil bath lubrication for extended service life
  • One‑piece magnesium housing reduces tool weight to approximately 8.1 lb (3.7 kg) for better control and reduced operator fatigue
  • Anvil stops when trigger is released to prevent throwing fasteners
  • One‑hand reverse button for convenient operation
  • Sealed oil bath prefilled with RED LINE® Synthetic Oil for continuous lubrication


Warranty
Snap-on Repair Center, 2 YEARS from Date of Purchase. Repair or calibrate at Snap-on Repair Center.

Specifications
  • Free Speed, RPM: 6,200
  • Sound Pressure Level, dB(A): 99.8
  • Length, inches (mm): 10.5 (267)
  • Vinyl Boot: MG1200BOOT
  • Air Consumption, Free Speed, CFM (SCFM) [l/min]: 6.4 (46) [181]
  • Extended Anvil Length, inches (mm): 3 (76)
  • Air Inlet Thread Size, inches (NPT): 3/8 (18)
  • Country of Origin: USA
  • Blows Per Minute, BPM: 1,050
  • Vibration Level, m/s²: 10.38
  • Recommended Hose Size, inches (mm): 3/8 (10)
  • Anvil Type: Friction Ring w/ Thru Hole
  • Drive Size, inches (mm): 3/4 (19)
  • Weight, lb (kg): 8.6 (3.99)
