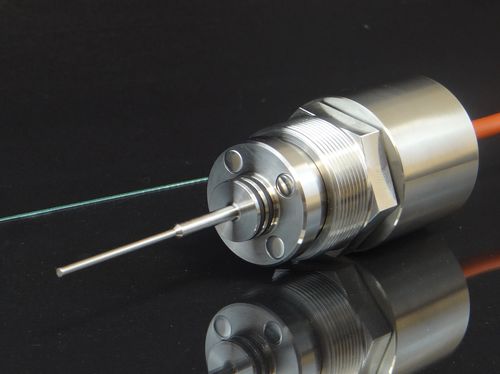

HPHT viscometer SOFEAT

vibratingdown-the-holeprocess

THE HIGH PRESSURE VISCOSITY AND DENSITY METER DESIGNED FOR DOWNHOLE APPLICATIONS The Sofeat is a state of the art instrument specially designed for HPHT applications and harshest environments like oil drilling. Compact and robust, it is easily integrated on MWD/LWD systems which are sent downhole at various kilometers below Earth surface in order to make in-situ measurements in extreme conditions of pressure and temperature. Viscosity and density are instantaneously measured and continuously sent to the surface thanks to a high temperature electronics BENEFITS • Measurement of bottomhole crude • Better formation evaluation by direct viscosity measurement • Better accuracy and repeatability than other techniques used to deduce viscosity • Quantification of fluid variations in real time • Better spectroscopic models using measured viscosity rather than calculation SPECIFICATION • High pressure at High temperature (1100 bars @ 200°C) • Robust- Long lasting • simultaneous viscosity and density measurement • High temperature transducer (125°C) with digital output TYPICAL APPLICATION FIELDS • Oil drilling • MWD, LWD • HPHT
