Viscosity monitoring system 9510

processmeasurementfor the food industry

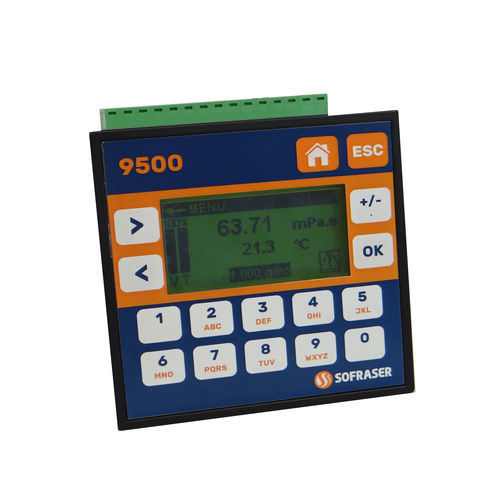

THE COMPACT PROCESSOR FOR VISCOSITY AND TEMPERATURE MONITORING Sofraser’s 9510 viscosity and temperature processor receives signals from the digital transducer (9000 Numeric) of a MIVI viscometer and displays the fluid’s real-time viscosity and temperature. User-friendly display: The 9510 viscosity and temperature processors offer instantaneous and continuous display in value, bar graphs as well as relevant equipment information. Personalized and intuitive use: Security codes, offset adjustment, viscosity value filtering, and viscosity and temperature Min/Max values and units are easily accessed and programmed on the detailed settings menu. Additional 9510 functions: Viscosity and temperature calibration features. Viscosity calibration table with manual or assisted filling feature. Temperature calibration with formula. Improve process management and production: Programmable analog outputs and alarm relays increase viscosity and temperature measurement use. TYPICAL APPLICATION FIELDS Food & beverage: dairy products, sauces, émulsions Coating: paints, lacquers, inks, varnishes Chemistry: polymers, détergents, surfactants Cosmetics: créa ms, gels, pastes
