Viscosity monitoring system 9710

multi-parameterprocesssulfuric acid

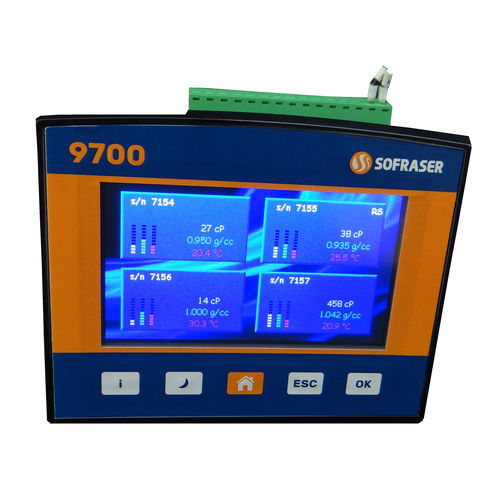

The Sofraser 9710 processor makes it possible to group the information of up to 4 separate measuring points in one single place and screen. 9710 receives and processes the data from up to 4 MIVI+9000 viscometers while accurately displaying the physical properties of the products. •One interface & easy-to-handle electronics: 9710 is the simple and economic solution for monitoring the information from several different sampling points. •Improved process management: With its analog and digital outputs, the 9710 can be customized to specific process control needs. All settings, including alarms and relays, can be set individually in order to achieve efficient process control. •Secure access: The 9710 configuration and parameters are password-secured according to authority level. •Instantaneous viscosity & temperature display: In addition to precise viscosity and temperature values, the 9710 offers visual confirmation via bars or graphs. Additional features as temperature compensated viscosity and end-users correlations are available in standard. On request the fluids densities can be measured and displayed. •User-friendly menu: The touchscreen and 5 function keys provide intuitive use and facilitate the simple switch from one MIVI+9000 viscometer to another. TYPICAL APPLICATION FIELDS Chemistry: polymers, détergents, surfactants Oil & Cas: fuels, lubricants Coating: paints, lacquers Cosmetics: creams, gels Printing & Packaging: inks, varnishes, cardboard glues, adhesives
